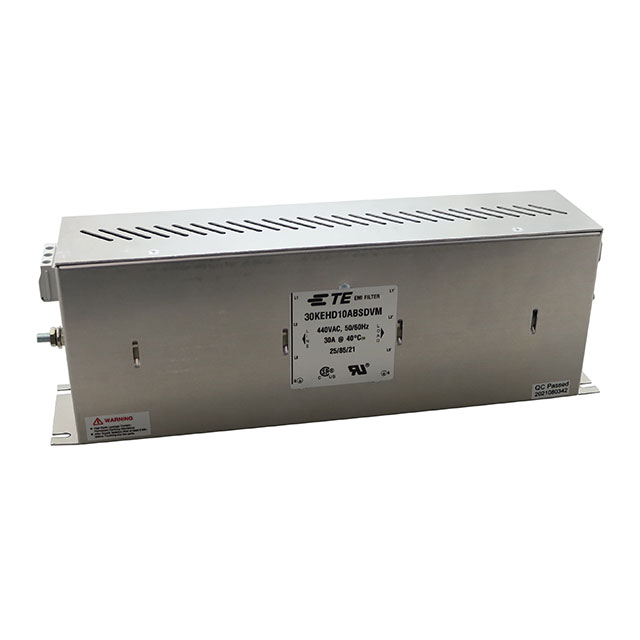

30KEHD10ABSDVM

$209.50

Description：LINE FILTER 440VAC 30A CHASS MNT
Series：KEH-BS
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:07119dad5093 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 440VAC 30A CHASS MNT
Series：KEH-BS
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：440V
Current：30 A
Frequency - Operating：50 ~ 60Hz
Applications：General Purpose
Approval Agency：CSA, UL
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

30KEHD10ABSDVM

Overview

The 30KEHD10ABSDVM is a three-phase EMC/EMI line filter from the KEH series by TE Connectivity Corcom Filters. It supports a rated current of 30 A and operates at 440 VAC within a 50 to 60 Hz frequency range. The unit features a two-stage filtering configuration designed for chassis mounting. Electrical termination is achieved via terminal block connections, ensuring secure integration into industrial power distribution systems requiring robust noise suppression.

Feature Summary

Three-phase delta configuration for balanced power line filtering
Two-stage EMI/RFI attenuation architecture
Terminal block termination for secure wiring
Chassis mount installation design

Applications

Industrial machinery power conditioning
Three-phase motor drive input stages
Commercial HVAC system power supplies
Manufacturing equipment noise suppression

Procurement Notes

Verify the specific voltage rating and current capacity against the application requirements before procurement. Confirm that the terminal block connection type matches existing wiring infrastructure. Ensure the chassis mounting dimensions align with the available enclosure space. Check for any recent product change notices or obsolescence announcements from the manufacturer to ensure long-term availability.

Selection Notes

Select this component when three-phase noise reduction is required for high-current applications up to 30 A. The two-stage design offers enhanced attenuation compared to single-stage alternatives. Consider the terminal block interface if screw-down connections are preferred over quick-connect styles. Evaluate the chassis mounting requirement against panel-mounted alternatives if space constraints differ.

Part Context

This part belongs to the KEH series of power line filters, which are engineered for demanding industrial environments. The series focuses on providing reliable EMI/RFI suppression for three-phase systems. TE Connectivity Corcom Filters designs these components to meet stringent regulatory standards for electromagnetic compatibility in heavy-duty electrical installations.
