Product Detailed Parameters
- Description：LINE FILTER 520VAC 30A CHASS MNT
- Series：KEH-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：30 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

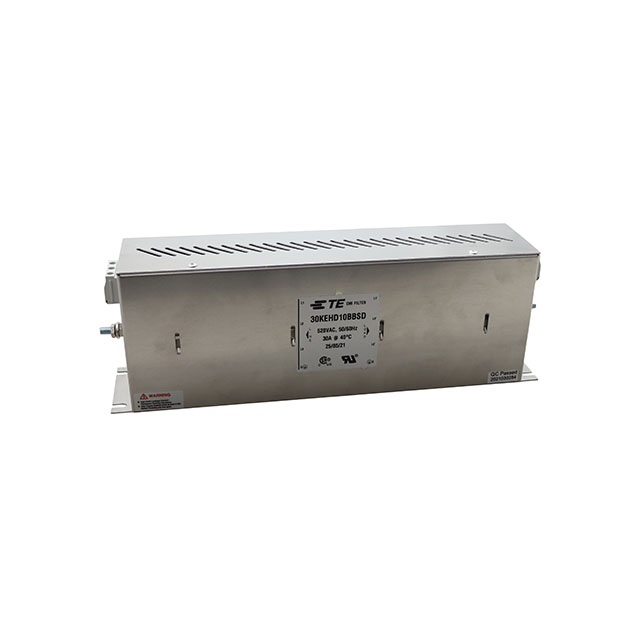

The TE Connectivity Corcom Filters 30KEHD10BBSD is a three-phase (Delta) EMC/EMI line filter designed for industrial applications. It supports a rated current of 30 A and operates at a voltage of 520 VAC. The unit functions as a two-stage filter suitable for 50/60 Hz systems. It utilizes terminal block termination for secure electrical connections. This component belongs to the KEH-BS series, engineered for robust noise suppression in demanding power environments.
Feature Summary
- Provides two-stage EMI/RFI noise filtration for three-phase Delta configurations
- Engineered for high-current industrial power distribution systems
- Utilizes terminal block termination for reliable circuit integration
Applications
- AC/DC drive systems
- HVAC equipment
- Industrial power conditioning
Procurement Notes
Verify the specific part number against official TE Connectivity documentation to confirm current availability status. Check for any Product Change Notices or End-of-Life announcements prior to procurement. Ensure compatibility with existing panel mounting requirements and terminal block specifications. Confirm regulatory certifications match project compliance needs.
Selection Notes
Select this model for three-phase Delta applications requiring 30 A capacity and 520 VAC operation. Ensure the system frequency matches the 50/60 Hz rating. Verify that terminal block termination aligns with wiring infrastructure. Consider the two-stage filtering capability for stringent noise reduction requirements in sensitive industrial electronics.
Part Context
This component is part of the KEH-BS series from TE Connectivity Corcom Filters. The series focuses on power line filters for industrial machinery. It addresses electromagnetic interference in high-power AC systems. The design supports standard industrial voltage and current levels for general-purpose power conditioning.
FAQ
What phase configuration does the 30KEHD10BBSD support?
It is designed for three-phase Delta configurations.
What type of termination does this filter use?
The unit uses terminal block termination for connection.
