Product Detailed Parameters
- Description：LINE FILTER 520VAC 30A CHASS MNT
- Series：KEH-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：30 A
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

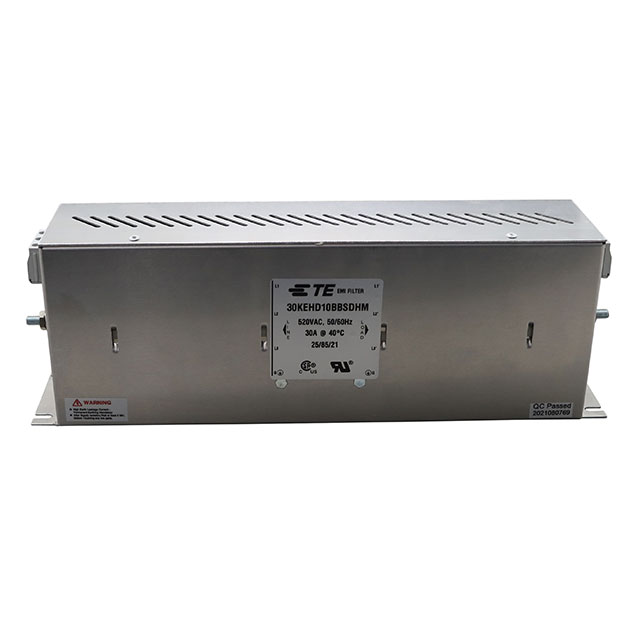

The TE Connectivity Corcom Filters model 30KEHD10BBSDHM is a three-phase (Delta) EMC/EMI line filter designed for general-purpose industrial applications. It operates at a frequency of 50 to 60Hz with a rated voltage of 520VAC and a current capacity of 30A. The unit features a two-stage configuration and utilizes terminal block connections. It is constructed for DIN rail mounting, providing robust noise suppression in demanding electrical environments.
Feature Summary
- Three-phase Delta configuration for balanced power systems
- Two-stage filtering architecture for enhanced noise attenuation
- Terminal block termination for secure wiring connections
- DIN rail mounting design for standardized panel integration
Applications
- Industrial machinery requiring EMI/RFI suppression
- General-purpose three-phase power distribution systems
- Equipment sensitive to electromagnetic interference
Procurement Notes
Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm the specific ordering suffix matches required specifications. Note that this product is scheduled for obsolescence; check for end-of-life notices and availability constraints before finalizing procurement plans.
Selection Notes
Select this model for three-phase Delta systems requiring 30A capacity at 520VAC. Ensure the application environment supports DIN rail installation. Verify that the two-stage filtering performance meets the specific EMI/RFI attenuation requirements of the target equipment.
Part Context
This component belongs to the Corcom KEH series, which specializes in high-current three-phase power line filters. The series is engineered for industrial-grade durability and effective noise reduction in complex electrical networks.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Due to the scheduled obsolescence status, consult the manufacturer for potential replacement recommendations or updated series information.
