30KEHD10BBSDVM

Overview

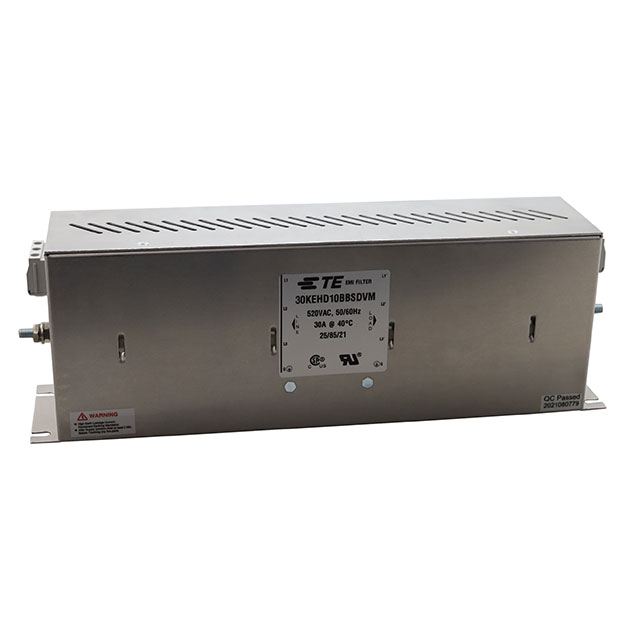

The TE Connectivity Corcom Filters 30KEHD10BBSDVM is a three-phase (Delta) EMC/EMI line filter designed for general-purpose applications. It supports a rated voltage of 520 VAC and handles a current of 30 A at 50-60 Hz. The unit features a two-stage filtering configuration with terminal block output connections. It is engineered for DIN rail mounting, offering a lightweight and compact design that does not require additional mounting screws.

Feature Summary

• Three-phase Delta configuration for industrial power distribution
• Two-stage EMI/RFI filtering architecture
• DIN rail mountable without requiring separate mounting screws

Applications

• Industrial machinery power conditioning
• General-purpose three-phase equipment noise suppression
• Factory automation systems

Procurement Notes

Verify the specific phase configuration (Delta) and voltage rating (520 VAC) against system requirements before procurement. Confirm that the terminal block connection style matches existing wiring infrastructure. Ensure the DIN rail mounting method aligns with the enclosure design, as no additional screws are required for installation.

Selection Notes

Select this component when a three-phase solution is required for 520 VAC systems. The two-stage design provides enhanced attenuation compared to single-stage units. Consider the terminal block termination type for ease of integration into control panels utilizing standard DIN rail mounting practices.

Part Context

This part belongs to the Corcom series of power line filters manufactured by TE Connectivity. The series includes various configurations for single and three-phase applications, catering to both chassis and DIN rail mounting needs. This specific model addresses the need for robust noise suppression in three-phase Delta networks.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
