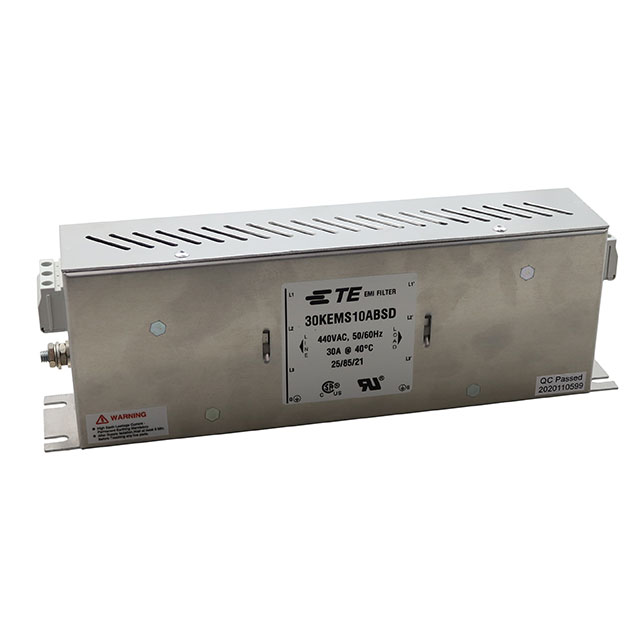

30KEMS10ABSD

$206.67

Description：LINE FILTER 440VAC 30A CHASS MNT
Series：KEM-BS
Mfr：TE Connectivity Corcom Filters
Package：Bulk,Box

SKU:884776b06536 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 440VAC 30A CHASS MNT
Series：KEM-BS
Mfr：TE Connectivity Corcom Filters
Package：Bulk,Box
Filter Type：Three Phase (Delta)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：440V
Current：30 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UL
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

30KEMS10ABSD

Overview

The TE Connectivity Corcom Filters 30KEMS10ABSD is a single-stage, three-phase EMI/EMC power line filter designed for industrial applications. It features a chassis mount configuration with terminal block connections. The unit operates at a rated voltage of 440 VAC and supports a continuous current rating of 30 A at frequencies of 50 Hz or 60 Hz. Physical dimensions are approximately 270 mm in length, 85 mm in height, and 45 mm in width. The device functions within an operating temperature range of -25°C to +85°C and includes flange mounting hardware.

Feature Summary

Provides electromagnetic interference mitigation for three-phase power systems
Utilizes a robust chassis mount design with terminal block termination
Engineered for high-current industrial power line filtering

Applications

Industrial automation machinery power conditioning
Three-phase motor drive input filtering
Commercial HVAC system power distribution

Procurement Notes

Verify the specific datasheet version before procurement as component specifications may evolve. Confirm that the terminal block interface matches your wiring harness requirements. Ensure the chassis mounting holes align with your enclosure design constraints. Check for any regional compliance certifications required for your specific installation location.

Selection Notes

Select this model when a single-stage solution is sufficient for your noise attenuation needs. Ensure the 30 A current rating exceeds your maximum load requirements with appropriate safety margins. Verify that the 440 VAC rating is compatible with your system's nominal voltage. Consider the physical footprint constraints regarding the 270 mm length during panel layout planning.

Part Context

This component belongs to the KEMS series of power line filters from TE Connectivity Corcom Filters. The series offers various current ratings for three-phase applications. The 30KEMS10ABSD represents a mid-range capacity option within this product family, balancing size and performance for standard industrial power filtering tasks.
