Product Detailed Parameters
- Description：LINE FILTER 440VAC 30A CHASS MNT
- Series：KEM-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：30 A
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

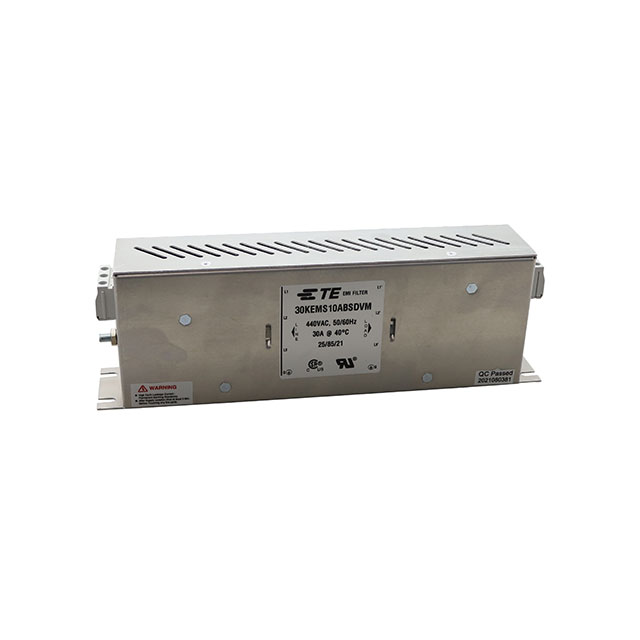

The TE Connectivity Corcom Filters 30KEMS10ABSDVM is a three-phase EMI/EMC power line filter designed for high-performance applications. It features a single-stage configuration with a current rating of 30 A and a voltage rating of 440 VAC. The unit operates at frequencies of 50 Hz and 60 Hz, utilizing terminal block connections for secure installation. With a leakage current of 5 mA, it ensures safety compliance while mitigating electromagnetic interference in industrial environments.
Feature Summary
- Provides robust electromagnetic interference mitigation for three-phase systems
- Engineered for high-performance noise suppression in demanding environments
- Utilizes a single-stage filtering architecture for efficient signal conditioning
Applications
- Industrial automation machinery
- Climate control systems
- General purpose power distribution networks
Procurement Notes
Verify the specific suffix VM against official datasheets to confirm exact terminal block specifications and mounting requirements. Ensure compatibility with 440 VAC delta configurations. Confirm lead times as availability may vary due to manufacturing schedules. Cross-reference part numbers with authorized distributors to avoid counterfeit components.
Selection Notes
Select this component when a three-phase solution with a 30 A rating is required for 440 VAC systems. Consider the terminal block interface for panel integration needs. Evaluate the 5 mA leakage current against strict safety standards. Compare performance metrics with other KEM series variants if higher or lower current capacities are needed.
Part Context
This model belongs to the Corcom KEM series, which specializes in three-phase power line filters. The series is recognized for handling significant current loads while maintaining effective EMI/EMC suppression. It serves as a critical component in protecting sensitive electronic equipment from line-side disturbances in industrial settings.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify direct replacements through manufacturer cross-reference tools.
