30KEMS10BBSD

Overview

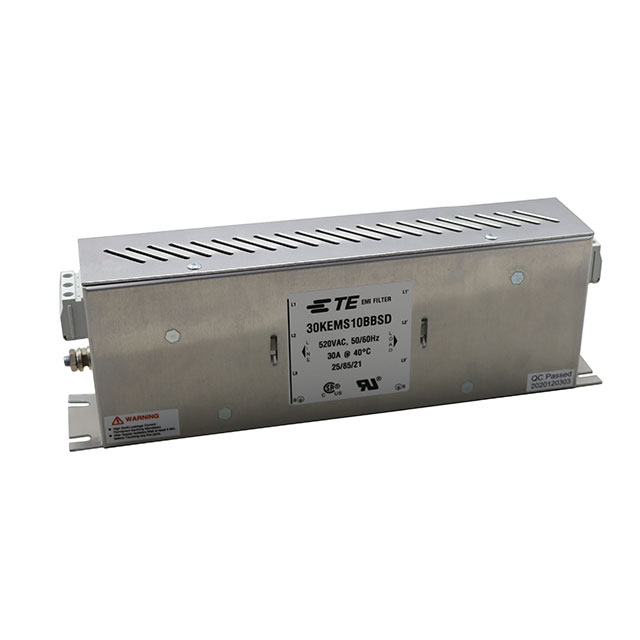

The 30KEMS10BBSD is a three-phase (Delta) EMC/EMI power line filter from the KEM-BS series by TE Connectivity Corcom. It features a single-stage configuration rated for 520 VAC and 30 A at 50/60 Hz. Designed for chassis or flange mounting, it utilizes terminal block connections to suppress electromagnetic interference in industrial power systems.

Feature Summary

• Provides single-stage EMI/EMC suppression for three-phase Delta configurations
• Engineered for robust industrial power line applications
• Supports secure terminal block electrical connections

Applications

• Industrial machinery power conditioning
• Three-phase motor drive protection
• Factory automation equipment filtering

Procurement Notes

Verify the specific datasheet version for precise dimensional tolerances and derating curves. Confirm that the terminal block interface matches your wiring harness requirements. Ensure the chassis mounting holes align with your enclosure design before finalizing procurement orders.

Selection Notes

Select this component when a single-stage solution is sufficient for your noise attenuation needs. The 30 A rating suits moderate current loads, while the 520 VAC specification accommodates standard industrial voltage levels. Verify compatibility with Delta phase configurations specifically.

Part Context

This part belongs to the KEM-BS series of Corcom filters, which are designed for high-reliability industrial environments. The series offers various ratings to handle different phase configurations and current demands within power distribution networks.

Replacement Considerations

Consult official TE Connectivity documentation for direct cross-reference part numbers. Ensure any substitute maintains the same three-phase Delta configuration and terminal block mounting style to preserve mechanical and electrical integrity.
