Product Detailed Parameters
- Description：LINE FILTER 520VAC 30A CHASS MNT
- Series：KEM-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：30 A
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

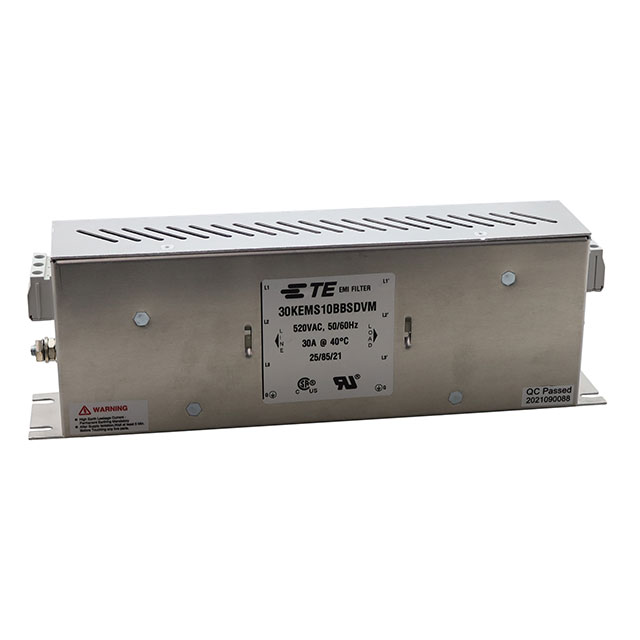

The TE Connectivity Corcom Filters 30KEMS10BBSDVM is a three-phase (Delta) EMC/EMI line filter designed for industrial applications. It features a single-stage configuration with a rated AC voltage of 520V and a current rating of 30A, operating at 50-60Hz. The unit utilizes terminal block inputs and outputs for secure electrical connections and supports DIN rail mounting for efficient panel integration. Certified by UL, CSA, and VDE, it ensures compliance with international safety standards.
Feature Summary
- Provides EMI/RFI noise suppression for three-phase power systems
- Supports DIN rail mounting for standardized enclosure installation
- Utilizes terminal block connections for reliable wiring
- Designed for general-purpose industrial power filtering
Applications
- Industrial machinery power conditioning
- Three-phase motor drive protection
- Factory automation control panels
- General purpose 520VAC power distribution systems
Procurement Notes
Verify the specific voltage and current requirements against the load specifications before procurement. Confirm that the terminal block connection type matches existing wiring infrastructure. Ensure the DIN rail mounting style is compatible with the target enclosure design. Check for required certifications such as UL or CSA based on regional regulatory needs. Validate the single-stage filtering capability meets the electromagnetic interference mitigation goals.
Selection Notes
Select this component when a three-phase Delta configuration is required for 520VAC systems. The 30A current rating suits moderate-power industrial loads. Terminal block termination offers flexibility compared to solder or screw-down options. DIN rail compatibility simplifies assembly in standard industrial enclosures. Single-stage filtering is appropriate for applications with less stringent attenuation requirements.
Part Context
This part belongs to the TE Connectivity Corcom Filters series, specializing in power line filtration. The 30KEMS10BBSDVM variant specifically addresses three-phase Delta applications. It complements other Corcom filters by offering dedicated solutions for higher voltage industrial environments. The series provides various configurations to meet diverse electromagnetic compatibility standards.
Replacement Considerations
Consult official TE Connectivity substitution guides for verified equivalents. Ensure any replacement maintains the 30A rating and 520VAC specification. Verify that the new component supports the same terminal block and DIN rail mounting methods. Confirm compatibility with existing three-phase Delta circuit topologies.
