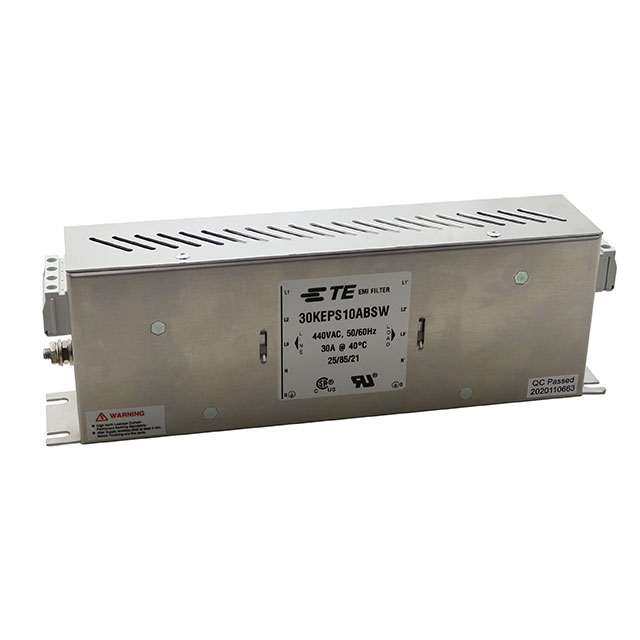

30KEPS10ABSW

Overview

The TE Connectivity Corcom Filters 30KEPS10ABSW is a three-phase superior performance EMI power line filter designed for industrial applications. It features a single-stage configuration with a rated voltage of 440 VAC and a current capacity of 30 A. The unit operates at frequencies of 50 Hz and 60 Hz, utilizing chassis mount installation with quick connect and screw termination types. Key electrical specifications include a leakage current of 8 mA. The component complies with UL and CSA standards and is constructed to withstand operating temperatures ranging from -25°C to +85°C.

Feature Summary

• Provides superior performance electromagnetic interference suppression in a single-stage design
• Supports three-phase wye configurations for industrial power conditioning
• Enables secure mounting via chassis installation with combined quick connect and screw terminations

Applications

• Industrial machinery power supply filtering
• Three-phase motor drive systems
• Commercial building power distribution units

Procurement Notes

Verify the exact part number against official TE Connectivity documentation before procurement. Confirm that the 440 VAC rating and 30 A current capacity match the specific circuit requirements. Ensure compatibility with chassis mounting dimensions and terminal types. Check for updated compliance certifications such as UL and CSA relevant to the target region. Note that availability may be restricted or subject to end-of-life status depending on the manufacturing timeline.

Selection Notes

Select this model when a three-phase EMI filter is required for 440 VAC systems with up to 30 A load. The single-stage design offers compact integration compared to multi-stage alternatives. Verify that the chassis mount style fits the available enclosure space. Ensure the operating temperature range of -25°C to +85°C aligns with the environmental conditions of the installation site. Confirm that the leakage current specification meets safety limits for the connected equipment.

Part Context

This component belongs to the KEP series of power line filters manufactured by TE Connectivity under the Corcom brand. The series is engineered for high-performance noise reduction in demanding industrial environments. The 30KEPS10ABSW variant specifically addresses three-phase applications requiring robust electromagnetic compatibility. It represents a specialized solution within the broader power condition product category.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult official TE Connectivity documentation for cross-reference information or equivalent models within the KEP series.
