Product Detailed Parameters
- Description：LINE FILTER 440VAC 30A CHASS MNT
- Series：KEP-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：30 A
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

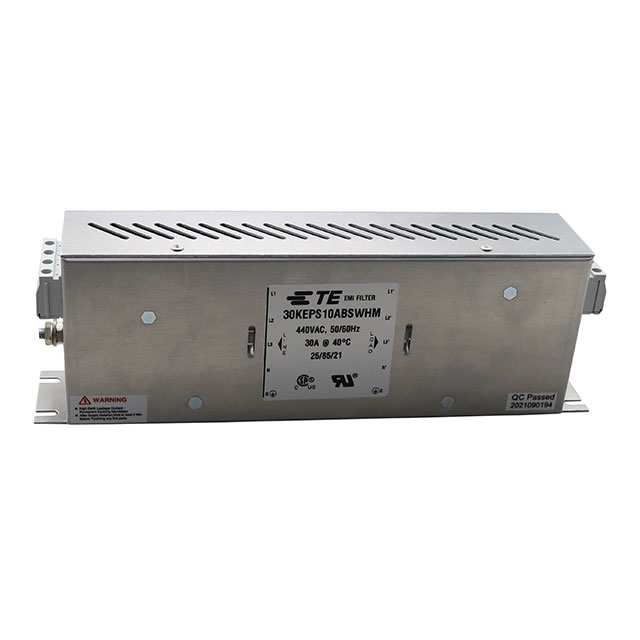

The TE Connectivity Corcom Filters 30KEPS10ABSWHM is a three-phase power line filter designed for industrial applications. It features a single-stage configuration with a current rating of 30 A and a voltage rating of 440 VAC. The unit operates at frequencies between 50 Hz and 60 Hz. Termination is achieved via terminal block connections, and the device supports chassis or DIN rail mounting styles.
Feature Summary
- Single-stage EMI/EMC filtering architecture
- Three-phase Wye system compatibility
- Terminal block termination interface
Applications
- Industrial machinery power conditioning
- Electrical panel EMC compliance
- Three-phase motor drive protection
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to potential counterfeit risks in the aftermarket. Confirm specific mounting hardware requirements as terminal blocks are included but brackets may vary. Check RoHS compliance documentation for environmental regulations relevant to your deployment region before finalizing procurement orders.
Selection Notes
Select this model when a single-stage solution is sufficient for noise attenuation requirements. Ensure the 30 A current rating aligns with the load profile. Verify that the 440 VAC rating matches the supply network. Terminal block termination requires compatible wiring infrastructure. Chassis or DIN rail mounting options provide installation flexibility depending on enclosure design constraints.
Part Context
This component belongs to the KEPS series of superior performance EMI filters from TE Connectivity Corcom. The series targets general-purpose industrial power line filtering. The part number indicates specific electrical ratings and termination types within the broader product family.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided source material. Consult TE Connectivity technical support for direct replacements if this discontinued or limited-stock item is required.
