Product Detailed Parameters
- Description：LINE FILTER 520VAC 30A CHASS MNT
- Series：KEP-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：30 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

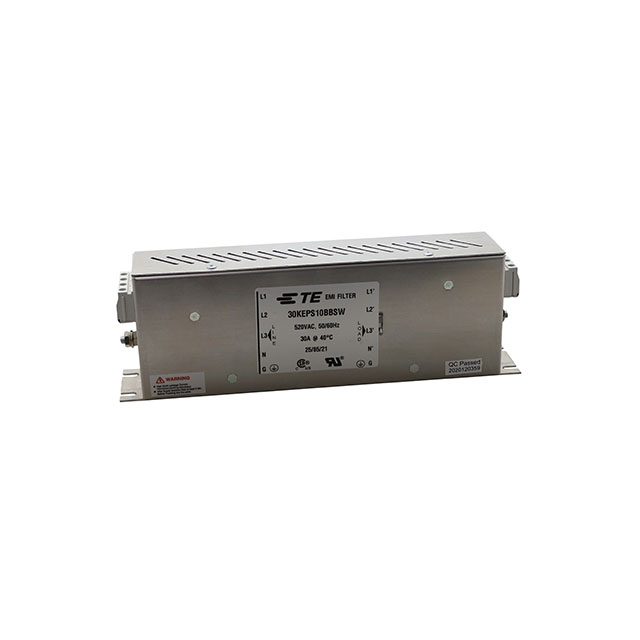

The 30KEPS10BBSW is a three-phase (Wye) EMC/EMI power line filter from the KEP-BS series by TE Connectivity Corcom. It supports a rated AC voltage of 520 VAC and a continuous current of 30 A at 50/60 Hz. The unit features a single-stage configuration with terminal block termination and flanged chassis mounting. Key electrical specifications include a maximum leakage current of 5 mA.
Feature Summary
- Provides EMI/EMC noise suppression for three-phase Wye systems
- Features robust flanged chassis mounting for secure installation
- Utilizes terminal block connections for straightforward wiring
Applications
- Industrial machinery power conditioning
- Three-phase motor drive input filtering
- Commercial building infrastructure power distribution
Procurement Notes
Verify the specific suffix 'BS' to confirm the flanged chassis mount style and terminal block interface, as these physical attributes distinguish this variant within the KEP series. Confirm that the 520 VAC rating aligns with your system's nominal voltage requirements. Ensure the 30 A current capacity meets the load demands without exceeding thermal limits during operation.
Selection Notes
Select this model when a three-phase Wye configuration is required with a 520 VAC rating. The flanged mounting style is suitable for panel integration where mechanical stability is prioritized. Terminal blocks offer flexibility for field wiring compared to solder or quick-connect options. Verify that the single-stage attenuation meets the specific EMI suppression needs of the application environment.
Part Context
This component belongs to the KEP-BS series of power line filters manufactured by TE Connectivity Corcom. The series is designed for industrial applications requiring reliable noise filtration in three-phase power systems. The part number structure indicates specific electrical ratings and physical mounting characteristics unique to this product line.
Replacement Considerations
Cross-reference with other KEP-BS series variants if different mounting styles are needed. Ensure substitute parts maintain the 520 VAC and 30 A ratings. Verify compatibility with existing terminal block wiring practices.
FAQ
What is the phase configuration for this filter?
The 30KEPS10BBSW is designed for three-phase Wye systems.
How is the filter terminated?
It uses terminal block connections for electrical interfacing.
