Product Detailed Parameters
- Description：LINE FILTER 520VAC 30A CHASS MNT
- Series：KEP-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：30 A
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

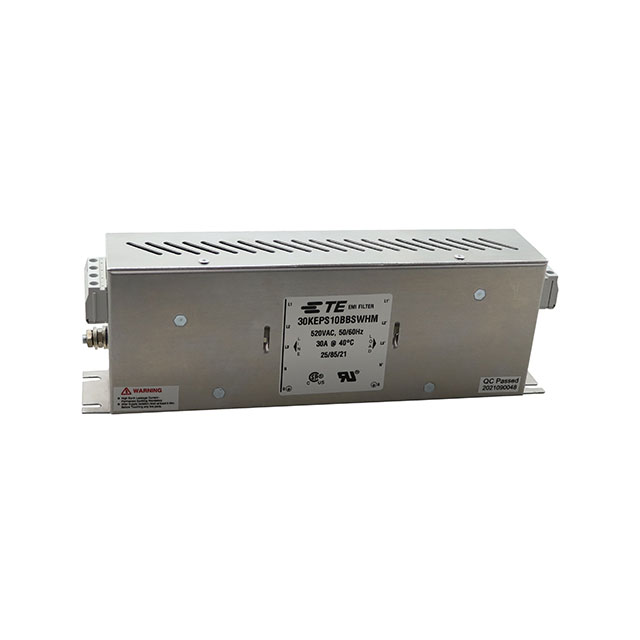

The 30KEPS10BBSWHM is a three-phase (Wye) EMC/EMI power line filter manufactured by TE Connectivity Corcom. It features a single-stage design rated for 30 A current and 520 VAC voltage at 50-60 Hz frequencies. The unit utilizes a DIN rail mount installation type with terminal block connections. This component belongs to the KEP series, designed for general-purpose power conditioning applications requiring high-plus performance specifications.
Feature Summary
- Single-stage EMI/EMC filtering architecture
- Three-phase Wye configuration
- DIN rail mounting capability
Applications
- General purpose power conditioning
- Industrial equipment noise suppression
- Three-phase power distribution systems
Procurement Notes
Verify availability status as this part is scheduled for obsolescence. Confirm technical compatibility with existing system requirements before procurement. Check for alternative replacement models within the same product family if supply constraints exist. Ensure ordering suffixes match specific voltage and current ratings required for the application.
Selection Notes
Select this model for three-phase applications requiring 30 A capacity and 520 VAC rating. Consider the single-stage topology for standard noise reduction needs. Verify DIN rail mounting space availability in the enclosure. Evaluate if the Wye configuration aligns with the source power distribution network.
Part Context
This component is part of the KEPS series from TE Connectivity Corcom, specializing in power line filters. The series offers various current and voltage ratings for industrial and commercial use. The 30KEPS10BBSWHM specifically addresses three-phase power quality requirements with standardized mounting and connection interfaces.
Replacement Considerations
Check for direct substitutes within the KEP series with matching electrical ratings. Consult manufacturer documentation for end-of-life notices and recommended alternatives. Verify pinout and mounting dimensions compatibility when selecting cross-references.
