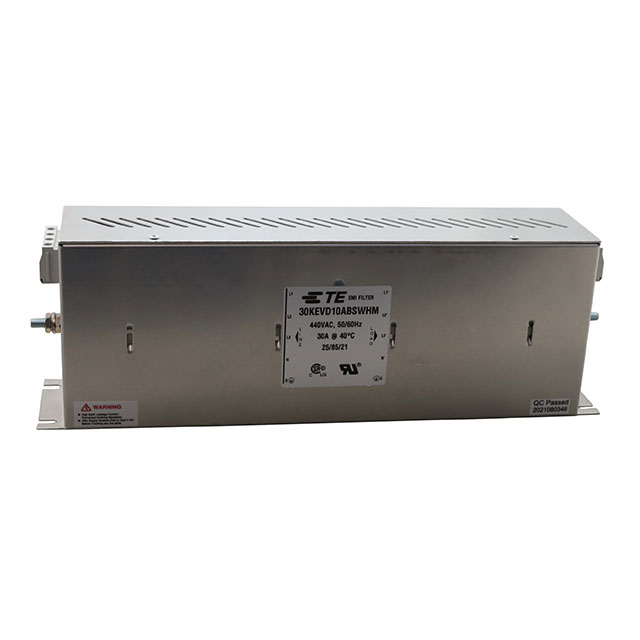

30KEVD10ABSWHM

$251.49

Description：LINE FILTER 440VAC 30A CHASS MNT
Series：KEV-BS
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:940379dcb2c2 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 440VAC 30A CHASS MNT
Series：KEV-BS
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Three Phase (Wye)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：440V
Current：30 A
Frequency - Operating：50 ~ 60Hz
Applications：General Purpose
Approval Agency：CSA, UL
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

30KEVD10ABSWHM

Overview

The TE Connectivity Corcom Filters 30KEVD10ABSWHM is a three-phase EMC/EMI line filter designed for general-purpose applications. It features a two-stage configuration with terminal block termination, rated for 30 A current and 440 VAC voltage at 50/60 Hz operating frequencies. The unit exhibits a leakage current of 5 mA and utilizes a Wye connection topology.

Feature Summary

Three-phase EMI/RFI filtering capability
Two-stage attenuation design
Terminal block termination style

Applications

General purpose industrial equipment
Three-phase power distribution systems
EMC compliance in machinery

Procurement Notes

Verify the exact part number against official TE Connectivity documentation to confirm specifications. Ensure compatibility with system voltage, current ratings, and mounting requirements before procurement. Cross-reference datasheets for mechanical dimensions and certification details.

Selection Notes

Select this component for three-phase AC power lines requiring EMI suppression. Confirm that the 30 A rating and 440 VAC specification match the application's electrical parameters. Verify terminal block compatibility with existing wiring infrastructure.

Part Context

This model belongs to the TE Connectivity Corcom Filters series, specializing in power line filters for electronic equipment. The brand provides components for noise reduction in various industrial and commercial environments.
