Product Detailed Parameters
- Description：LINE FILTER 520VAC 30A CHASS MNT
- Series：KEV-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：30 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

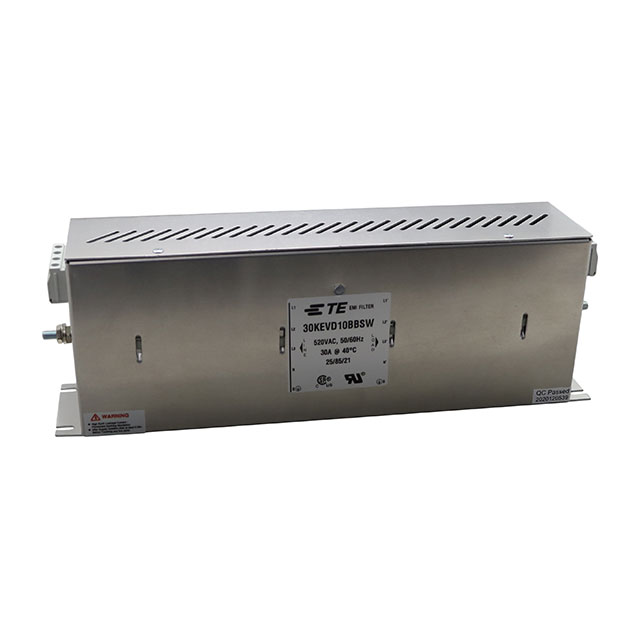

The 30KEVD10BBSW is a three-phase (Wye) EMC/EMI power line filter from the Kev-BS series by TE Connectivity Corcom. It supports a rated current of 30 A and a maximum voltage of 520 VAC at 50/60 Hz. The unit features a two-stage filtering configuration with terminal block connections for secure wiring. Designed for chassis mounting, it provides robust electromagnetic interference suppression for industrial power systems requiring high reliability and compliance with international safety standards.
Feature Summary
- Two-stage EMI/EMC filtering architecture for enhanced noise attenuation
- Three-phase Wye configuration suitable for balanced power distribution
- Terminal block termination ensures stable electrical connections
- Chassis mount design facilitates integration into industrial enclosures
Applications
- AC/DC Drives
- HVAC Systems
- Robotics
- UPS Systems
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels or certified distributors. Confirm that the specific part number matches project requirements for phase configuration, voltage rating, and mounting style. Check for recent product change notices or obsolescence status prior to finalizing procurement decisions to ensure long-term supply chain stability.
Selection Notes
Select this model when a three-phase Wye topology is required for 520 VAC systems operating at 30 A. Ensure the application environment accommodates chassis mounting constraints. Verify that terminal block interfaces align with existing wiring harnesses. Consider thermal management requirements as the unit operates within standard industrial temperature ranges without active cooling.
Part Context
This component belongs to the Kev-BS series of power line filters manufactured by TE Connectivity under the Corcom brand. The series is engineered for industrial applications demanding reliable EMI suppression. The 30KEVD10BBSW variant specifically addresses three-phase power conditioning needs with dual-stage filtration capabilities.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity technical support for direct equivalents or pin-compatible alternatives if discontinuation occurs.
