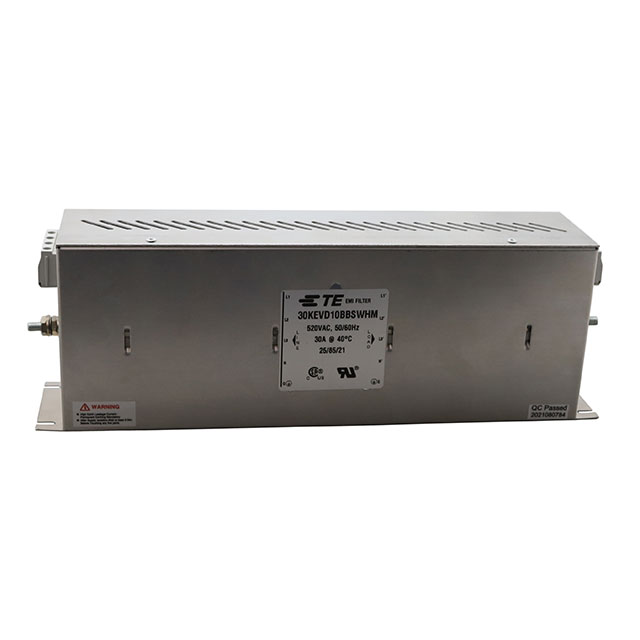

30KEVD10BBSWHM

$269.54

Description：LINE FILTER 520VAC 30A CHASS MNT
Series：KEV-BS
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:ba4196905a9e Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 520VAC 30A CHASS MNT
Series：KEV-BS
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Three Phase (Wye)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：520V
Current：30 A
Frequency - Operating：50 ~ 60Hz
Applications：General Purpose
Approval Agency：CSA, UL
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

30KEVD10BBSWHM

Overview

The TE Connectivity Corcom Filters 30KEVD10BBSWHM is a three-phase power line filter designed for chassis or DIN rail mounting. It features a 30A current rating and operates at 520VAC. The unit utilizes terminal block connections for both input and output, supporting WYE (4 wire + ground) configurations. This two-stage filter is RoHS compliant and intended for industrial applications requiring effective electromagnetic interference suppression.

Feature Summary

Three-phase EMI/RFI filtering capability
Terminal block input and output connections
Supports WYE configuration with ground
DIN rail or chassis mountable design

Applications

Industrial machinery power distribution
Three-phase motor drive systems
Commercial HVAC equipment
Automated manufacturing lines

Procurement Notes

Verify the specific voltage rating of 520VAC against your system requirements before integration. Confirm that the terminal block connection style matches your wiring infrastructure. Ensure the physical dimensions accommodate your DIN rail or chassis space constraints. Check for any recent product change notices regarding component sourcing or material composition updates.

Selection Notes

Select this model when three-phase filtering is required for high-current applications up to 30A. The terminal block interface simplifies wiring compared to screw terminals in some enclosures. Consider the WYE configuration compatibility with your neutral and ground setup. Evaluate the two-stage attenuation performance against your specific noise spectrum requirements.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, known for robust power line filtration solutions. The 30KEVD series specifically addresses three-phase needs in industrial environments. It complements single-phase offerings by providing balanced noise reduction across all phases, ensuring stable operation of sensitive electronic loads connected to three-phase power sources.
