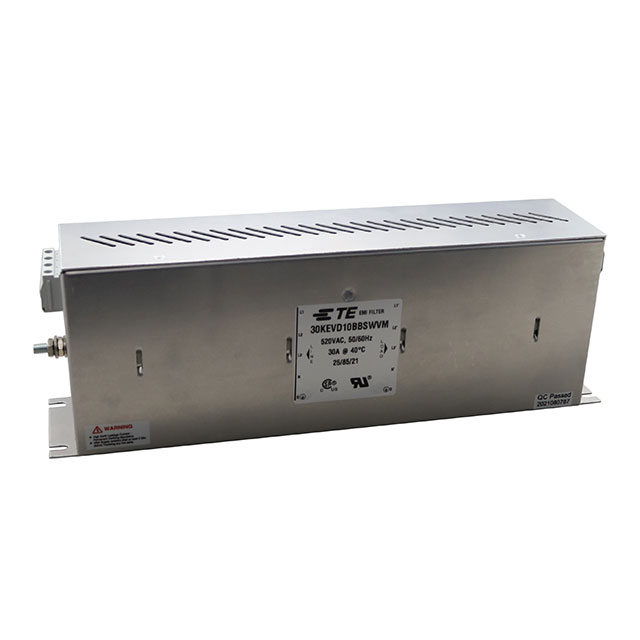

30KEVD10BBSWVM

$274.34

Description：LINE FILTER 520VAC 30A CHASS MNT
Series：KEV-BS
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:0f0d6f4e7da8 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 520VAC 30A CHASS MNT
Series：KEV-BS
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Three Phase (Wye)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：520V
Current：30 A
Frequency - Operating：50 ~ 60Hz
Applications：General Purpose
Approval Agency：CSA, UL
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

30KEVD10BBSWVM

Overview

The TE Connectivity Corcom Filters 30KEVD10BBSWVM is a three-phase power line filter designed for chassis mounting. It features a two-stage configuration with a star (wye) connection and bayonet snap-in termination style. The unit is rated for a maximum current of 30 amperes at 520 VAC, making it suitable for medium to high-power industrial applications requiring effective EMI/RFI suppression.

Feature Summary

Three-phase power line filtering capability
Two-stage noise attenuation architecture
Bayonet snap-in terminal connections
Chassis mount installation format

Applications

Industrial machinery power distribution
Medium-power electronic equipment
Three-phase motor drive systems

Procurement Notes

Verify the component status as this part number is scheduled for obsolescence and will be discontinued by the manufacturer. Confirm availability through authorized distributors or check for valid replacement alternatives before finalizing procurement plans to ensure supply continuity.

Selection Notes

Select this component when three-phase filtering is required for systems operating up to 520 VAC and 30A. Ensure the application supports chassis mounting and bayonet-style wiring. Verify that the two-stage attenuation meets specific electromagnetic compatibility requirements for the target environment.

Part Context

This model belongs to the KEV series of Corcom filters, which are engineered for robust performance in demanding industrial environments. The series provides reliable electromagnetic interference suppression for critical power lines, ensuring compliance with regulatory standards for conducted emissions.
