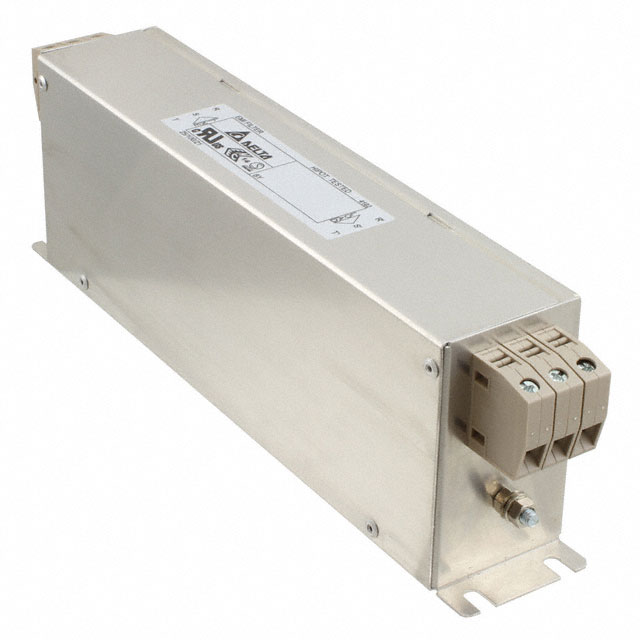

30TDVST2-1

Description：LINE FILTER 480VAC 30A CHASS MNT
Series：TDV
Mfr：Delta Electronics
Package：Box

SKU:7749aa4a0c82 Category: Power Line Filter Modules Brand: Delta Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 480VAC 30A CHASS MNT
Series：TDV
Mfr：Delta Electronics
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：480V
Current：30 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：cURus, ENEC, SEMKO
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：L1 - 1.1mH, L2 - 9µH
Voltage - Rated AC (Phase to Phase)：-

Download product information

30TDVST2-1

Overview

The Delta Electronics 30TDVST2-1 is a three-phase EMC/EMI line filter module designed for vertical chassis mounting. It features a single-stage terminal block configuration and supports a current rating of 30 A at 480 VAC, 50/60 Hz. The unit is constructed for robust industrial environments, providing effective suppression of electromagnetic interference in power distribution systems.

Feature Summary

Vertical chassis mount design with terminal block connections
Single-stage EMI/EMC filtering architecture
Three-phase (Delta) compatibility for industrial power lines

Applications

Industrial automation equipment noise suppression
Power distribution system EMI mitigation
Electrical cabinet installation for sensitive machinery

Procurement Notes

Verify the specific suffix designation against official Delta Electronics documentation to confirm exact pinout and mounting specifications. Confirm RoHS compliance status through the manufacturer's latest datasheet or certification records before procurement integration.

Selection Notes

Select this component when vertical space constraints require a chassis-mounted filter solution. Ensure the application voltage does not exceed 480 VAC and the continuous load current remains within the 30 A limit. Verify terminal block compatibility with existing wiring infrastructure.

Part Context

This model belongs to Delta Electronics' series of vertical three-phase filters. It serves as an alternative to similar chassis-mount units, offering standardized terminal block interfaces for easier integration into industrial control panels and power management systems.

Replacement Considerations

Cross-reference part numbers such as 30TDVST2 or 30TDVST2-1 from authorized distributors to ensure functional equivalence. Verify that any substitute maintains the same 30 A rating and 480 VAC specification.
