30VB6

Overview

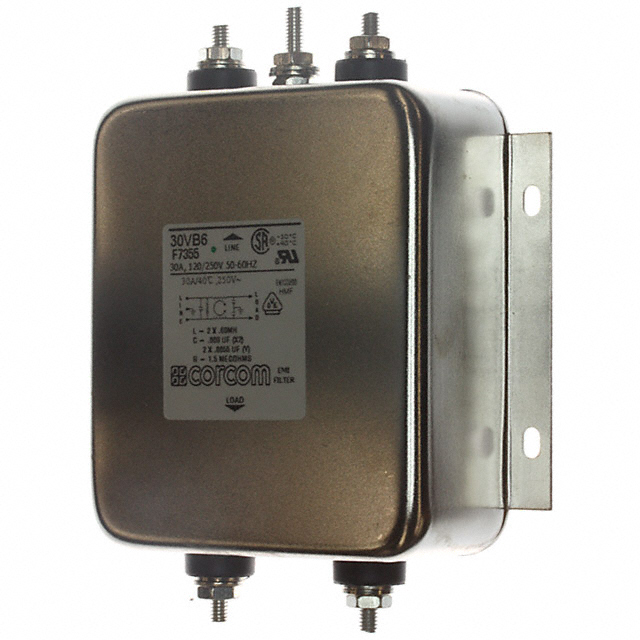

The TE Connectivity Corcom Filters 30VB6 is a single-phase EMI/RFI line filter designed for chassis mounting. It features a threaded post termination style with an 8-32 thread specification. The component is rated for a current of 30 A and operates at voltages of 250 VAC within a 50/60 Hz frequency range. This single-stage filter is engineered to meet low leakage current requirements, specifically complying with VDE standards.

Feature Summary

• Single-stage EMI/RFI filtering architecture
• Chassis mount installation configuration
• Threaded post termination interface

Applications

• High impedance load applications
• Low current operational environments
• Equipment requiring VDE compliance

Procurement Notes

Verify the specific datasheet version for the 30VB6 model to confirm exact dimensional tolerances and terminal specifications. Ensure that the chassis mounting holes align with the threaded post requirements. Confirm that the application environment supports the specified voltage and current ratings before integration.

Selection Notes

Select this component when a single-phase solution is required for chassis-mounted installations. It is suitable for applications involving high impedance loads where low leakage current is a critical design parameter. The 8-32 threaded post termination dictates the necessary board or panel preparation.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in electromagnetic interference suppression. The 30VB6 represents a general-purpose RFI filter designed for robust performance in industrial and commercial power entry modules.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
