30VK6

Overview

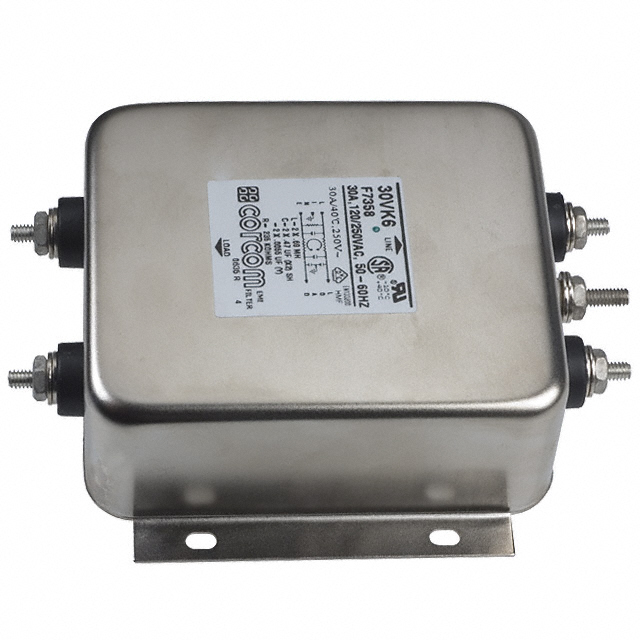

The TE Connectivity Corcom Filters 30VK6 is a single-phase EMI/RFI power line filter designed for flange mounting. It supports a rated current of 30 A at 250 VAC and operates at frequencies of 50 Hz or 60 Hz. The component utilizes threaded bolt terminals for secure electrical connections. It is part of the K series, which provides general-purpose filtering solutions suitable for high impedance loads.

Feature Summary

• Provides electromagnetic interference suppression for single-phase AC power lines
• Features robust flange mounting configuration for stable chassis integration
• Utilizes threaded bolt terminal style for reliable electrical connectivity

Applications

• Industrial automation equipment requiring EMI protection
• Motor drive systems needing noise reduction
• General purpose electronic devices with high impedance loads

Procurement Notes

Verify the exact voltage rating and phase configuration against your system requirements before procurement. Confirm that the flange mounting dimensions and threaded bolt specifications match your chassis design. Ensure the 30 A current rating exceeds your maximum operational load to maintain safety margins and compliance with relevant EMC standards.

Selection Notes

Select this model when a single-phase solution is required for 250 VAC applications. The 30 A capacity makes it suitable for higher power industrial loads compared to lower amperage variants in the SK series. Consider the flange mount style if space constraints or vibration resistance are critical factors in the installation environment.

Part Context

This component belongs to the TE Connectivity Corcom K series, which focuses on general-purpose RFI power line filters. The series is engineered for high impedance loads and offers various current ratings. The 30VK6 specifically addresses the need for robust noise filtration in industrial settings where reliable performance under standard AC frequencies is essential.

Replacement Considerations

Consult official TE Connectivity documentation for verified substitute part numbers within the same series or family. Ensure any replacement maintains identical voltage, current, and mounting specifications to guarantee compatibility.
