30VSK6C

Overview

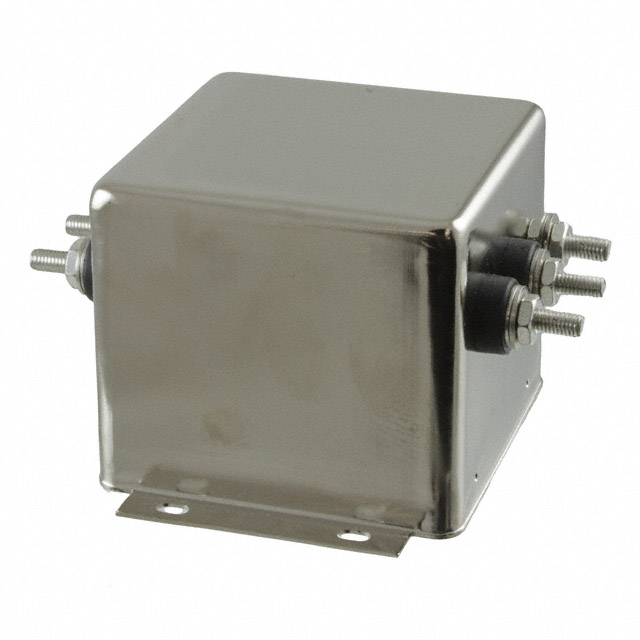

The TE Connectivity Corcom Filters 30VSK6C is a single-phase EMI/RFI power line filter designed for conducted noise suppression. It features a 30 A current rating and operates at 250 V AC within the 50 Hz to 60 Hz frequency range. The unit utilizes a threaded stud ground choke configuration with flange mounting and threaded bolt terminals. This component provides single-stage filtering performance, ensuring compliance with FCC standards for equipment requiring effective electromagnetic interference reduction in standard power applications.

Feature Summary

• Provides single-stage EMI/RFI suppression for conducted noise reduction
• Utilizes threaded stud ground choke configuration for secure grounding
• Designed for flange mounting with threaded bolt terminal connections

Applications

• Equipment requiring FCC compliance for conducted emissions
• Single-phase power line noise suppression systems
• Industrial machinery input stages
• Commercial electronic device power entry modules

Procurement Notes

Verify the specific datasheet version for the 30VSK6C to confirm exact dimensional tolerances and terminal specifications. Ensure that the installation environment supports the thermal requirements associated with continuous 30 A operation. Confirm that the flange mounting hardware matches the threaded stud dimensions specified in the official manufacturer documentation before procurement.

Selection Notes

Select the 30VSK6C when a single-phase filter with a 30 A capacity is required for 250 V AC systems. This model is appropriate for applications needing robust flange mounting and threaded stud grounding rather than chassis screw mounting. Consider this part for general-purpose EMI suppression where single-stage attenuation meets regulatory limits without requiring multi-stage complexity.

Part Context

This component belongs to the Corcom K Series of power line filters from TE Connectivity. The series is engineered for high-performance RFI suppression in demanding environments. The 30VSK6C specifically represents the 30 A variant within this lineup, offering a balance of high current handling and effective noise filtration for single-phase AC power lines operating at standard utility frequencies.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified equivalents. Cross-referencing requires matching current ratings, voltage limits, and mounting styles.
