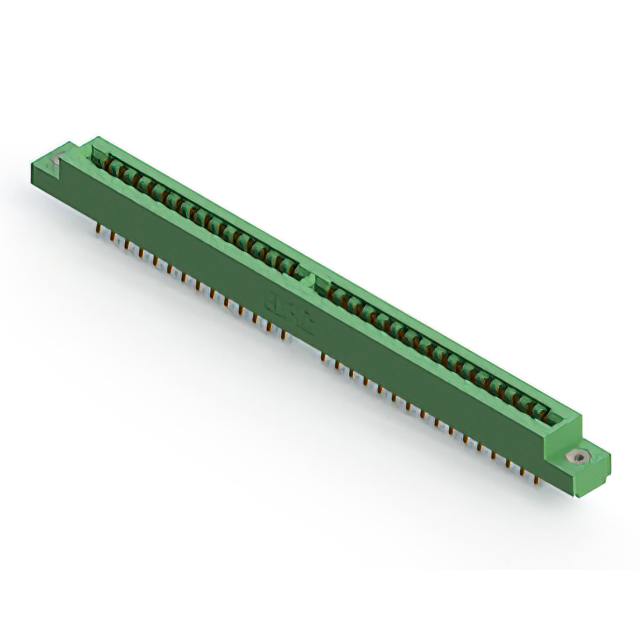

310-060-556-208 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 60POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 310-060-556-208
- Description：CONN EDGE DUAL FMALE 60POS 0.156
- Series：310
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：30
- Number of Positions：60
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Extender
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Semi Bellows
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 310-060-556-208
Edgeboard Connectors Overview
The EDAC Inc. 310-060-556-208 is a card edge connector designed for dual-edge board applications. It features 60 positions arranged in two rows with a 0.156-inch (3.96mm) pitch. The connector utilizes female contacts with gold plating and supports right-angle surface mount installation. It accommodates board thicknesses within standard specifications and operates reliably across a temperature range of -40°C to 105°C.
Edgeboard Connectors Feature Summary
- Supports dual-edge card insertion for secure mechanical engagement
- Provides reliable electrical contact through gold-plated female terminals
- Enables right-angle surface mount integration onto printed circuit boards
Edgeboard Connectors Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Consumer electronics module connections
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct configuration. Confirm that the selected variant matches the required mounting style, contact count, and termination type for the target application before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a dual-edge card interface with a 0.156-inch pitch is required. Ensure the design accommodates the specified right-angle orientation and surface mount footprint. Validate that the target PCB thickness falls within the connector's operational limits for proper mating.
Edgeboard Connectors Part Context
This part belongs to the EDAC 310 series of standard card edge connectors. The series provides various position counts and mounting options for general-purpose interconnect needs. The 310 designation indicates a specific configuration within the broader EDAC product portfolio focused on reliable board-to-board or board-to-card connections.
Edgeboard Connectors Replacement Considerations
Consult the official EDAC 310 Series Ordering Guide for verified substitute part numbers. Cross-reference pin counts, pitch, and mounting styles to ensure functional compatibility with existing designs.
