310-11-102-41-001000

Headers, Receptacles, Female Sockets Overview

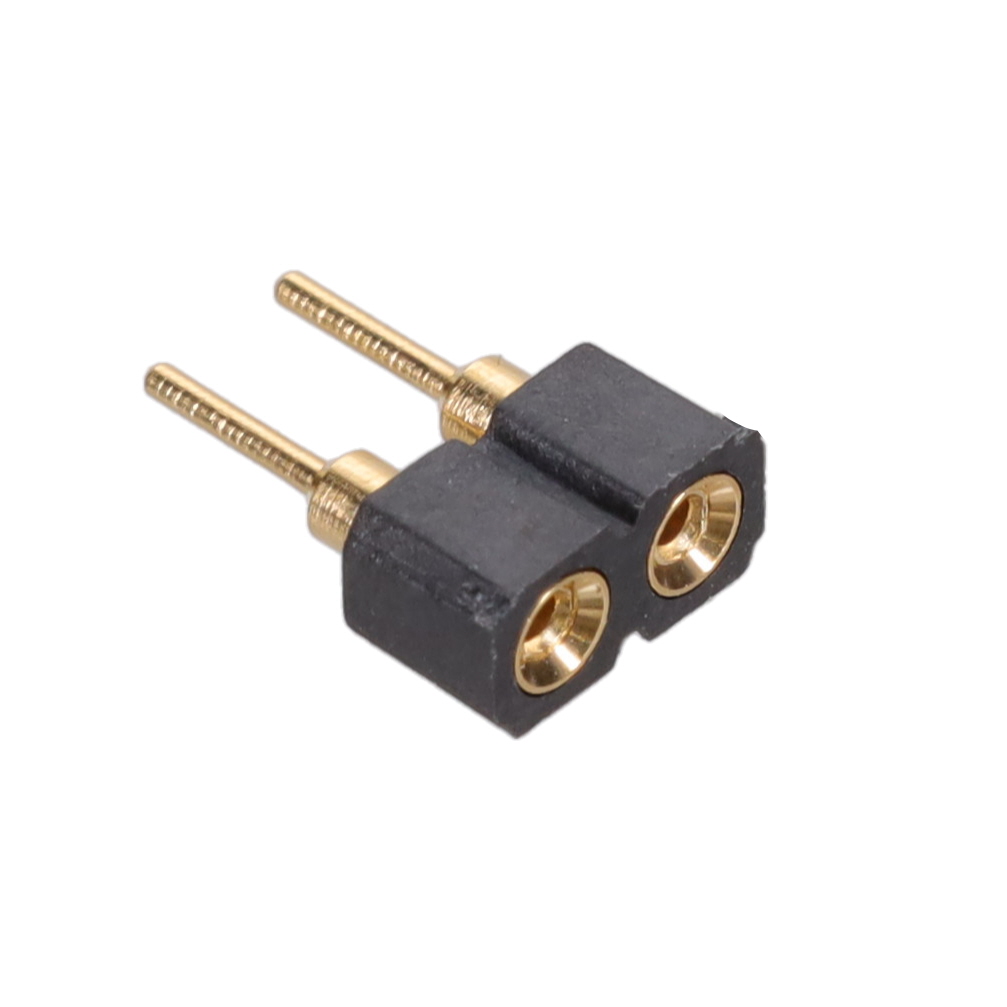

The Mill-Max Manufacturing Corp. model 310-11-102-41-001000 is a standard solder tail socket designed for through-hole mounting on printed circuit boards. This component features a single row of contacts with a .100 inch (2.54 mm) pitch, accommodating leads with diameters ranging from .015 to .025 inches. The connector utilizes brass alloy and beryllium copper materials with gold plating for reliable electrical performance. It is classified as an interconnect socket suitable for high-reliability applications requiring precise mechanical alignment and durable solder tail termination.

Headers, Receptacles, Female Sockets Feature Summary

• Standard solder tail socket configuration for secure PCB attachment
• Single row design with .100 inch pitch for standardized spacing
• Accepts lead diameters between .015 and .025 inches
• Constructed with brass alloy and beryllium copper contacts

Headers, Receptacles, Female Sockets Applications

• Through-hole interconnection in electronic assemblies
• Socketing components with standard lead dimensions
• High-reliability precision-machined interconnect systems

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific contact material composition and plating thickness against the official Mill-Max datasheet before procurement. Confirm that the through-hole footprint matches the target PCB layout requirements. Ensure compatibility with the intended lead diameter range of .015 to .025 inches. Check for RoHS compliance status if required by project specifications. Validate the single-row configuration against system density needs.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a standard solder tail socket is required for through-hole mounting. The .100 inch pitch makes it compatible with common industry standards. Consider the mechanical tolerance of +/- .010 inches for assembly planning. Evaluate the need for beryllium copper contacts for spring properties. Ensure the application does not require surface mount or alternative termination methods.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Mill-Max 310 series of interconnect sockets. The series is known for manufacturing high-reliability precision-machined components. Mill-Max emphasizes US-based manufacturing to ensure consistent quality and service. The product line includes various configurations for different pitch and row requirements.

Headers, Receptacles, Female Sockets Replacement Considerations

No direct public substitute part numbers are confirmed for this specific Mill-Max model. Alternative solutions may require custom fabrication or verification of generic equivalents. Consult Mill-Max engineering for potential cross-reference options.
