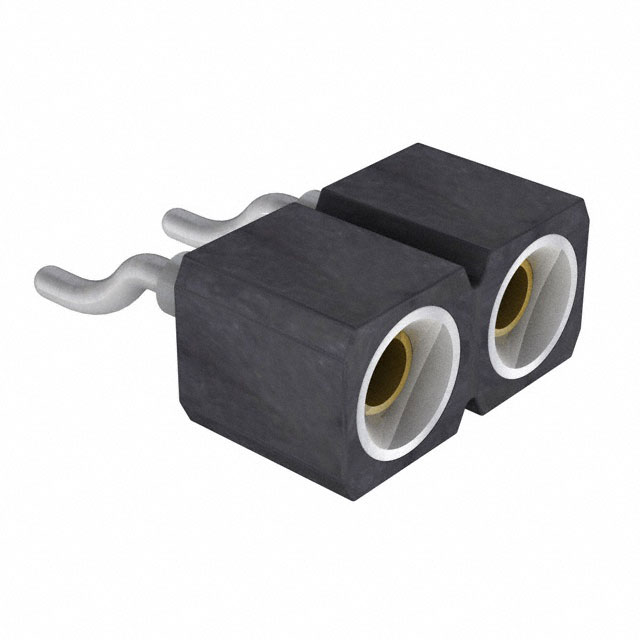

310-43-102-40-023000

310-43-102-40-023000 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Mill-Max Manufacturing Corp.. Its product description is CONN RCPT 2POS 0.1 GOLD SMD R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 310-43-102-40-023000

• Description：CONN RCPT 2POS 0.1 GOLD SMD R/A
• Series：310
• Mfr：Mill-Max Manufacturing Corp.
• Package：Bulk
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：2
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Surface Mount, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Insulation Color：Black
• Insulation Height：0.100" (2.54mm)
• Contact Length - Post：-
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：3A
• Voltage Rating：100V, 150VDC
