310-43-104-40-023000

Headers, Receptacles, Female Sockets Overview

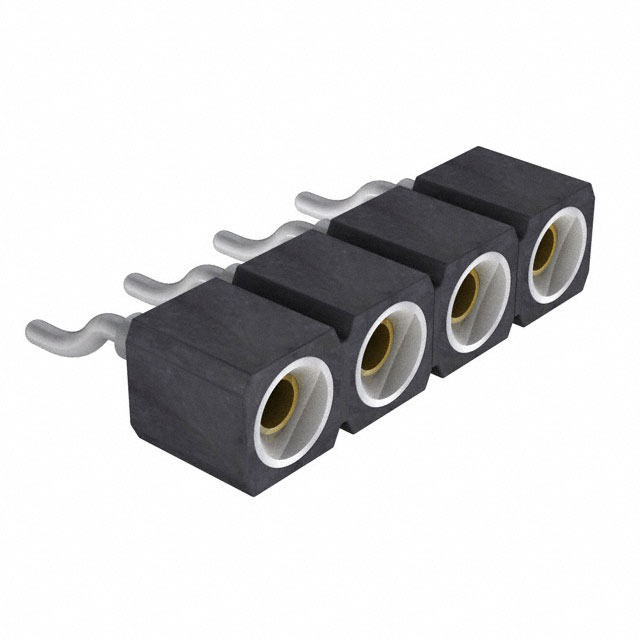

The Mill-Max 310-43-104-40-023000 is a 4-position receptacle connector designed for surface mount applications. It features a right-angle configuration with a 0.100-inch (2.54mm) pitch. The contacts are gold-plated to ensure reliable signal transmission and corrosion resistance. This component serves as a standard socket header, providing a secure interface for mating connectors in electronic assemblies.

Headers, Receptacles, Female Sockets Feature Summary

• Surface mount right-angle receptacle design
• Gold-plated contact surfaces for reliability
• Standard 0.100 inch (2.54mm) pin spacing

Headers, Receptacles, Female Sockets Applications

• PCB interconnect systems
• Electronic assembly headers
• Signal routing connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against official Mill-Max documentation to confirm exact plating thickness, material composition, and mechanical tolerances. Ensure the selected variant matches the required surface mount footprint and right-angle orientation for the target PCB layout before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, right-angle surface mount solution is required for four-channel interconnection. Consider the 2.54mm pitch compatibility with standard mating headers. Evaluate the gold plating requirements for environmental durability and contact resistance needs within the specific application environment.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Mill-Max standard socket header series, which provides precision-machined interconnect components. The 310 series typically offers high-reliability connections suitable for various industrial and commercial electronics applications where robust surface mounting is necessary.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult the Mill-Max cross-reference tool for parametrically similar parts. Verify that any substitute maintains the 4-position count, 2.54mm pitch, and surface mount right-angle form factor to ensure mechanical and electrical compatibility.
