310-43-131-61-105000

Headers, Receptacles, Female Sockets Overview

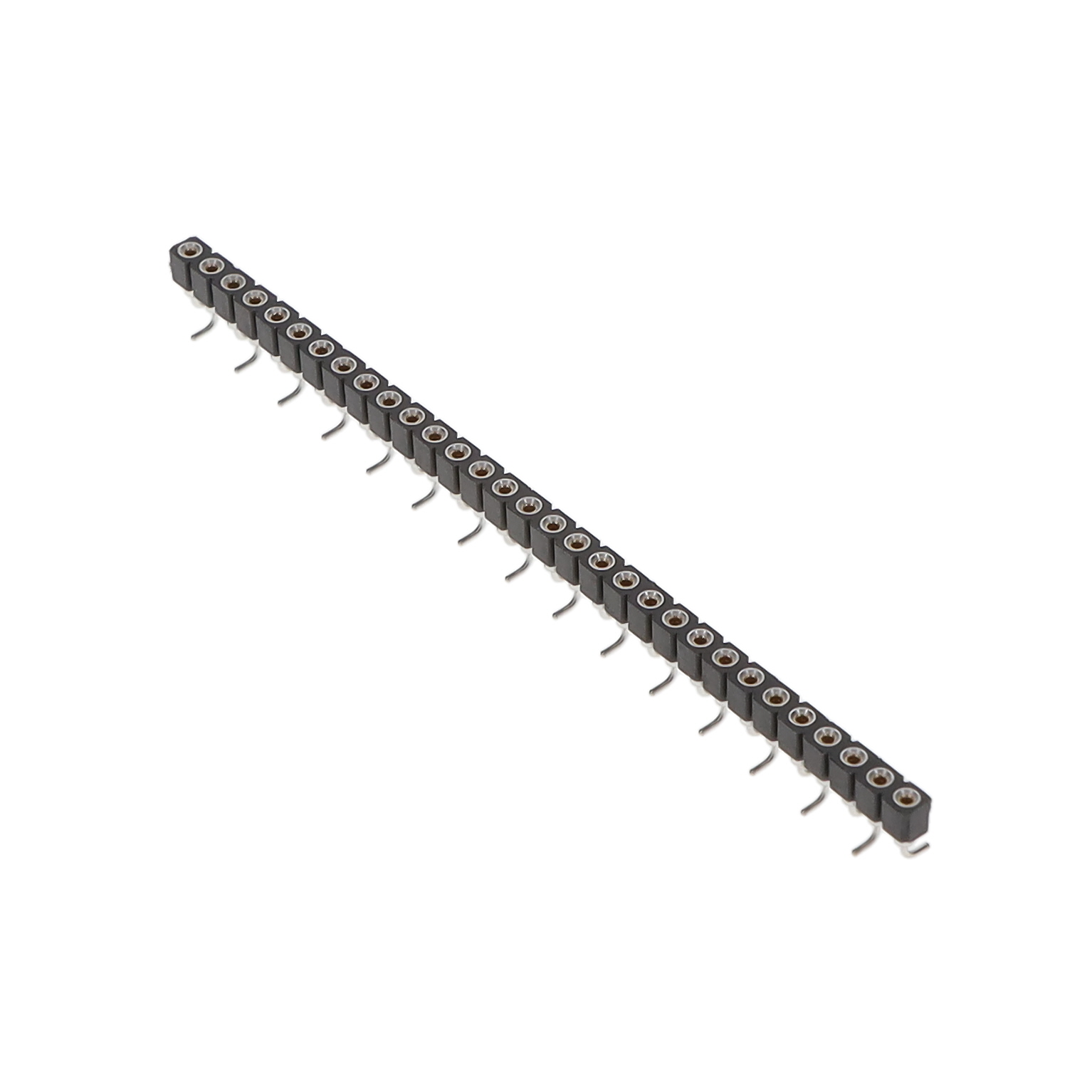

The Mill-Max 310-43-131-61-105000 is a surface mount receptacle connector featuring 31 positions with a 0.100-inch (2.54mm) pitch. It utilizes gold-plated contacts for reliable signal transmission and is designed for board-to-board applications. The component is manufactured by Mill-Max Manufacturing Corp., a recognized leader in precision interconnects, ensuring high reliability for electronic assemblies requiring robust vertical mating connections.

Headers, Receptacles, Female Sockets Feature Summary

• Surface mount technology design for automated PCB assembly
• Gold-plated contact surfaces for enhanced conductivity and corrosion resistance
• Single row configuration accommodating standard lead diameters

Headers, Receptacles, Female Sockets Applications

• Board-to-board electrical interconnections
• IC and component socketing applications
• High-reliability electronic equipment assemblies

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix to confirm surface mount compatibility and contact plating thickness. Ensure the selected variant matches the required lead diameter acceptance range of 0.015 to 0.025 inches. Confirm that the single-row configuration aligns with the target printed circuit board layout requirements before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this model when a low-profile surface mount solution is required for 31-position interfaces. Consider the 0.100-inch pitch for standard spacing needs. Evaluate the mechanical stability provided by the machined pin construction against vibration environments. Verify that the current and voltage ratings meet the specific circuit demands of the application design.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Mill-Max 310 series of interconnect sockets. The series is characterized by precision-machined contacts and versatile mounting options. Mill-Max Manufacturing Corp. produces these components using vertically integrated processes to maintain tight tolerances and consistent quality across high-volume production runs.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Mill-Max engineering for direct equivalents or cross-reference compatible sockets from other manufacturers based on identical pitch and position specifications.
