310-44-104-41-001000

Headers, Receptacles, Female Sockets Overview

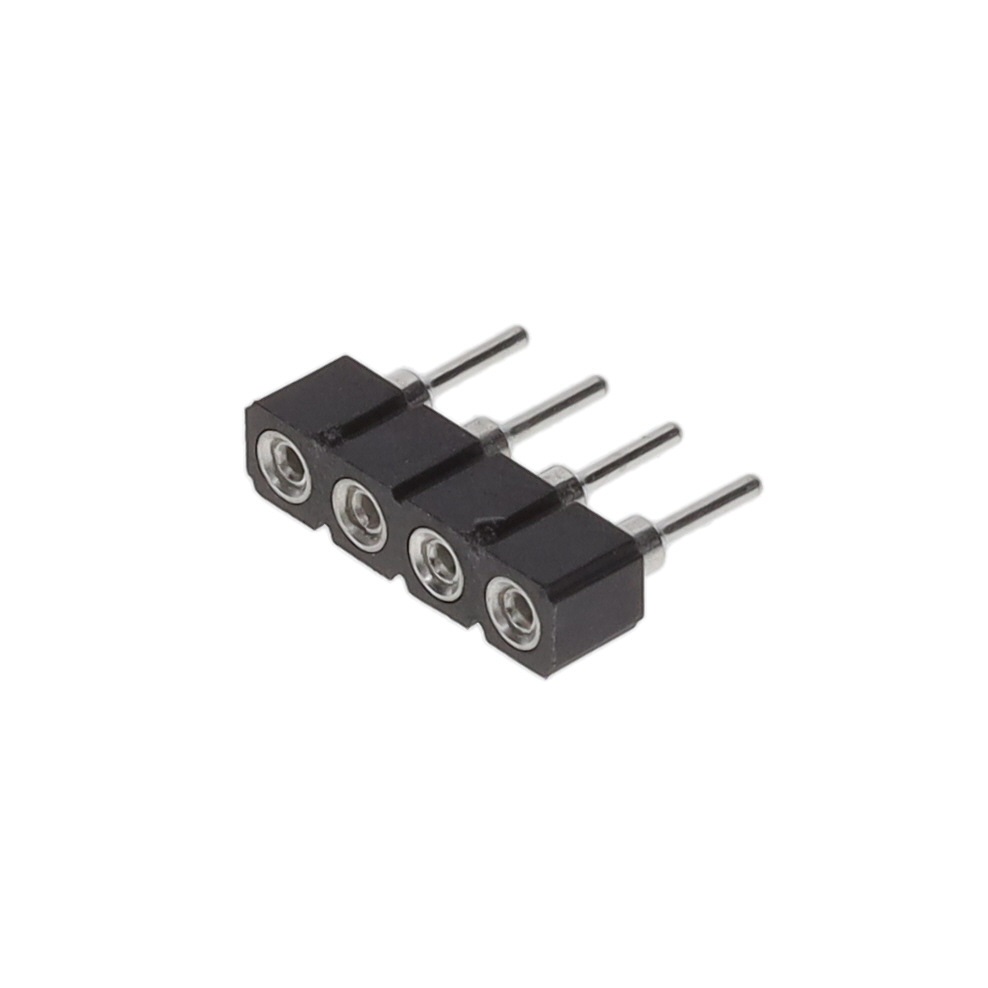

The Mill-Max 310-44-104-41-001000 is a single-row IC socket designed for through-hole mounting. It features four positions with a 0.100-inch (2.54mm) mating pitch. The connector utilizes tin-plated contacts and standard solder tail termination. This component serves as a reliable interface for integrated circuits in electronic assemblies requiring durable, low-profile connections.

Headers, Receptacles, Female Sockets Feature Summary

• Single-row receptacle configuration for simplified board layout
• Standard solder tail termination for secure through-hole attachment
• Tin contact plating for corrosion resistance and conductivity

Headers, Receptacles, Female Sockets Applications

• Integrated circuit prototyping and testing sockets
• Low-density digital logic board interconnections
• General-purpose electronic assembly interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific tin plating thickness and material composition against the official datasheet before integration. Confirm that the single-row, four-position geometry matches the target PCB footprint requirements. Ensure compatibility with standard DIP package dimensions to guarantee proper mechanical fit and electrical continuity during operation.

Headers, Receptacles, Female Sockets Selection Notes

Select this part when a minimal pin count is required for single-row applications. The tin finish offers cost-effective performance for non-high-frequency environments. Consider the through-hole installation method if surface-mount alternatives are unsuitable for the mechanical stress requirements of the target application.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Mill-Max 310 series of standard solder tail sockets. It represents a basic interconnect solution focusing on reliability and ease of assembly. The design prioritizes functional simplicity over high-density or specialized environmental sealing features found in more complex connector families.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other 4-position, single-row DIP sockets from Mill-Max with identical 0.100-inch spacing and through-hole termination. Verify that alternative parts maintain the same tin plating specification and physical envelope dimensions to ensure interchangeability without PCB redesign.
