310-87-130-01-640101

Headers, Receptacles, Female Sockets Overview

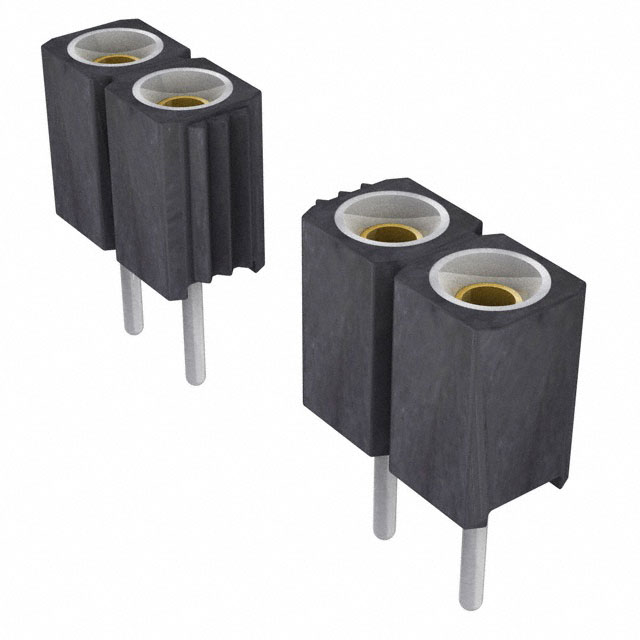

The Preci-Dip 310-87-130-01-640101 is a single-row SIL socket connector designed for through-hole mounting. It features thirty positions with a 2.54 mm pitch and straight termination. The contacts are constructed from beryllium copper and brass, featuring gold and tin plating to ensure reliable conductivity. Rated for 3A current and 100V AC or 150V DC, the housing utilizes glass fiber-reinforced PCT material. Operating temperatures range from -55°C to 125°C, with UL94 V-0 flammability rating.

Headers, Receptacles, Female Sockets Feature Summary

• Single row SIL socket configuration for direct PCB insertion
• Gold and tin plated contacts for enhanced signal integrity
• Glass fiber reinforced PCT housing for thermal stability

Headers, Receptacles, Female Sockets Applications

• Industrial control panel interconnections
• Consumer electronics board-to-board linking
• Telecommunications equipment signal routing

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against official Preci-Dip documentation to confirm contact plating thickness and terminal type compatibility. Ensure the selected variant matches the required current rating and voltage specifications for the target application environment. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm availability status and lead times prior to finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a single-row, high-density connection is required for through-hole assembly processes. The 2.54 mm pitch ensures compatibility with standard header pins. Evaluate the operating temperature range and flammability rating to ensure compliance with safety standards for the intended enclosure. Confirm mechanical dimensions fit within the available PCB real estate constraints.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Preci-Dip 310 series of SIL sockets. The series offers various pin counts and termination options for general-purpose electronic applications. The 310 series is characterized by its robust construction and reliable performance in standard industrial environments, providing a stable connection interface between circuit boards.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official cross-reference lists for compatible substitutes. Verify that any alternative part maintains identical pitch, current rating, and mechanical footprint to ensure seamless integration without redesigning the printed circuit board layout.
