310-87-131-01-609101

Headers, Receptacles, Female Sockets Overview

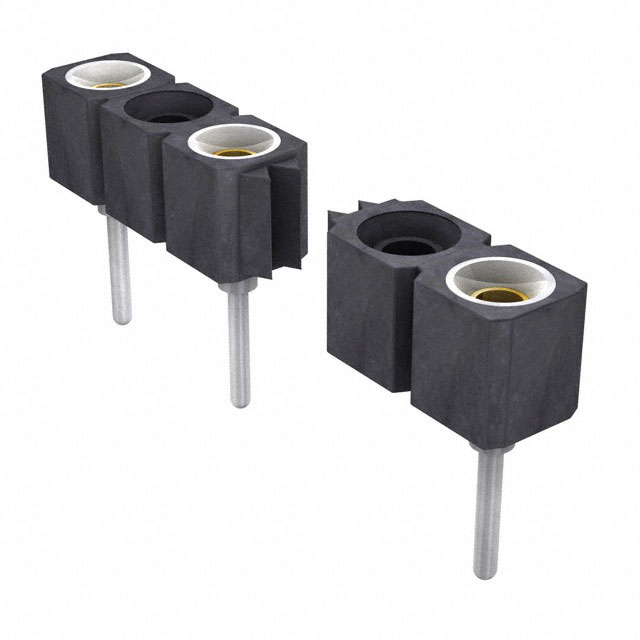

The Preci-Dip 310-87-131-01-609101 is a vertical socket connector designed for board-to-board applications. It features 31 positions with a 0.200-inch (5.08mm) mating pitch. The component utilizes through-hole termination and employs a push-pull fastening mechanism for secure attachment. Contact surfaces are gold-plated to ensure reliable signal transmission, while the posts are tin-plated. Constructed with brass contacts and PCT insulation rated UL94 V-0, it supports a maximum current of 3A at 150V DC across an operating temperature range of -55°C to 125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Vertical socket design with push-pull fastening for secure board-to-board connection
• Gold-plated mating contacts paired with tin-plated posts for optimized conductivity
• High-temperature resistant PCT insulation material ensuring UL94 V-0 flammability rating

Headers, Receptacles, Female Sockets Applications

• Industrial control systems requiring robust vertical interconnects
• Consumer electronics utilizing board-to-board mounting configurations
• Automotive electronic modules needing high-reliability vertical sockets

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against official Preci-Dip documentation to confirm exact plating thickness and packaging specifications. Ensure compatibility with mating header series within the 310 family. Confirm that the push-pull retention mechanism aligns with the mechanical constraints of the target assembly. Cross-reference environmental certifications such as RoHS compliance if required by the end-product regulations.

Headers, Receptacles, Female Sockets Selection Notes

Select this model when a vertical orientation is required for space-constrained board-to-board layouts. The 5.08mm pitch accommodates higher current loads compared to finer pitches. The push-pull feature simplifies assembly and disassembly processes. Verify that the 3A current rating meets the electrical requirements of the circuit. Consider the physical height constraints imposed by the vertical socket profile during PCB layout.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Preci-Dip 310 series, which specializes in low-profile vertical socket connectors. The series is characterized by its use of push-pull fastening mechanisms to ensure stable connections in demanding environments. These connectors are engineered for high-density applications where vertical stacking or direct board-to-board interfacing is necessary. The design prioritizes mechanical stability and electrical reliability.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible mating headers include part numbers from the 350 series, such as 350-80-131-01-609101. Verify pin count and pitch alignment before substitution. Ensure the replacement maintains the same vertical orientation and fastening type.
