310-87-163-01-666101

Headers, Receptacles, Female Sockets Overview

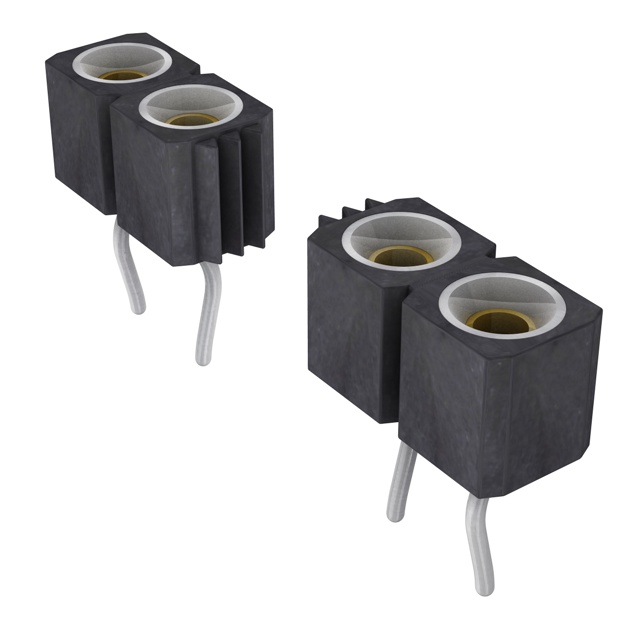

The Preci-Dip 310-87-163-01-666101 is a single-row socket connector designed for board-to-board applications. It features 63 positions with a 0.100 inch (2.54mm) mating pitch and utilizes through-hole termination. The contacts are made of beryllium copper, featuring gold plating on the mating interface and tin plating on the tail. Rated for 3A current at 150V DC, it operates within a temperature range of -55°C to +125°C. The housing is constructed from black glass-reinforced PCT material rated UL94 V-0.

Headers, Receptacles, Female Sockets Feature Summary

• Single-row female socket configuration for direct PCB mounting
• Gold-plated beryllium copper contacts ensure reliable signal transmission
• Push-pull locking mechanism secures mating connections
• Glass-reinforced PCT insulation provides thermal stability

Headers, Receptacles, Female Sockets Applications

• Industrial control system interconnects
• Consumer electronics internal circuitry
• Telecommunications equipment modules

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific contact count and plating thickness against the official manufacturer datasheet before integration. Confirm that the push-pull locking style matches the mechanical constraints of the target assembly. Ensure compatibility with mating header dimensions to prevent misalignment during insertion.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a single-row female interface is required for high-density board-to-board connections. The 2.54mm pitch accommodates standard through-hole manufacturing processes. Consider the beryllium copper material for superior spring properties compared to brass alternatives in high-cycle environments.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Preci-Dip Series 310 family of DIP sockets. These connectors are characterized by their straight solder tail design and robust construction suitable for automated assembly. The series offers various position counts while maintaining consistent electrical and mechanical specifications across the lineup.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other 63-position single-row DIP sockets with identical 2.54mm pitch and push-pull locking mechanisms. Verify that alternative suppliers offer matching gold plating thickness and UL94 V-0 rated insulation materials.
