311-87-104-41-001101

Headers, Receptacles, Female Sockets Overview

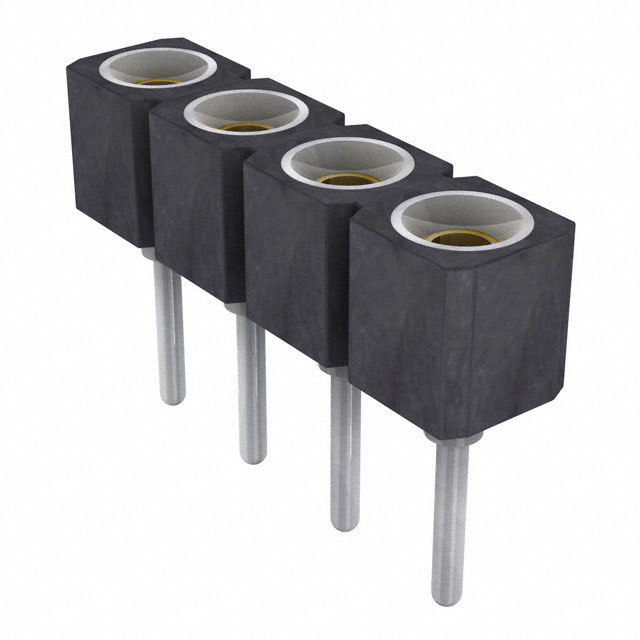

The Preci-Dip 311-87-104-41-001101 is a single-row IC socket featuring 4 positions with a 2.54 mm pitch. Designed for through-hole mounting, it utilizes straight termination for soldering. The connector supports a current rating of 3A and voltage ratings of 100V AC and 150V DC. Constructed with glass-filled thermoplastic housing and brass beryllium copper contacts plated with tin and gold flash, it operates within a temperature range of -55°C to +125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Single row configuration with 4 contact positions
• Through-hole straight termination design
• Gold flash and tin plating on brass beryllium copper contacts
• Glass-filled thermoplastic insulator material

Headers, Receptacles, Female Sockets Applications

• Integrated circuit component sockets
• General electronic assembly connections
• Prototype board interconnects

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific pin count and pitch against project requirements before ordering. Confirm that the through-hole straight termination style matches the PCB layout constraints. Ensure the operating temperature range meets the environmental conditions of the intended application. Cross-reference the manufacturer part number to avoid confusion with similar series variants.

Headers, Receptacles, Female Sockets Selection Notes

Select this model when a compact single-row interface is required for low-pin-count integrated circuits. The 2.54 mm pitch ensures compatibility with standard breadboard and prototyping systems. Consider the thermal stability provided by the glass-filled housing for environments requiring resistance to heat distortion during soldering processes.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Preci-Dip 311 series of IC sockets. It shares design characteristics with other models in the lineup, such as the 311-87-150-41-001101, which features a higher contact count but maintains the same structural and electrical specifications.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other single-row sockets with identical 2.54 mm pitch and 4-position layouts. Verify mechanical dimensions and terminal type compatibility before adopting alternative manufacturers' components.
