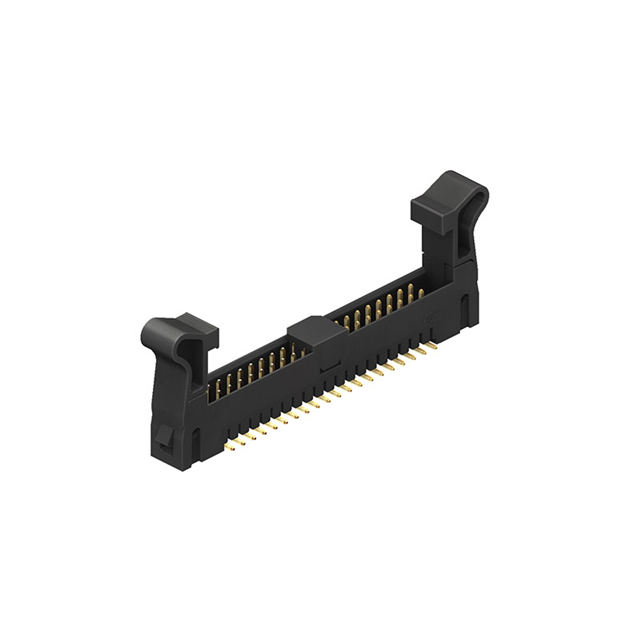

3110-40-003-13-00-TR

3110-40-003-13-00-TR is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists CNC Tech. Its product description is HEADER, 0.079" (2.00MM), 40 POS.. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 3110-40-003-13-00-TR

• Description：HEADER, 0.079" (2.00MM), 40 POS.
• Series：-
• Mfr：CNC Tech
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.079" (2.00mm)
• Number of Positions：40
• Number of Rows：2
• Row Spacing - Mating：0.079" (2.00mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Latch Lock/Eject Hooks, Long
• Contact Length - Mating：-
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：-
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：Flash
• Contact Finish - Post：-
• Contact Material：Brass
• Insulation Material：Polybutylene Terephthalate (PBT)
• Features：Keying Slot
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：-
• Current Rating (Amps)：1A
• Voltage Rating：-
