314-87-102-01-899101

Overview

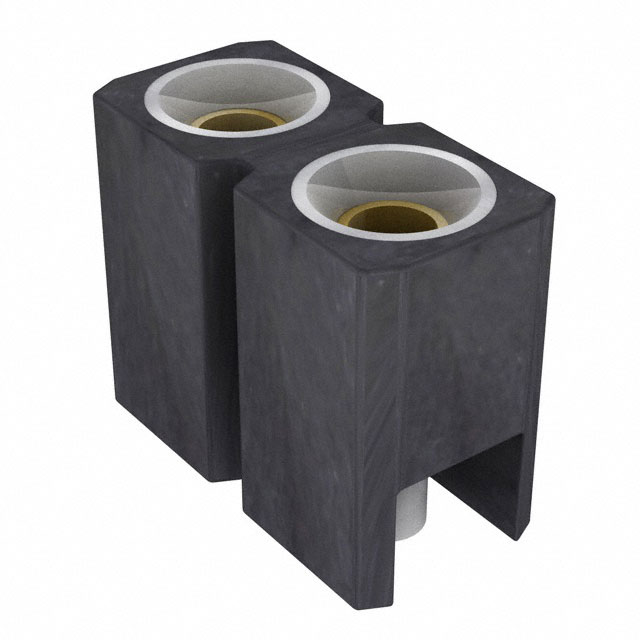

The Preci-Dip 314-87-102-01-899101 is a surface mount socket connector featuring a 2.54 mm pitch and two positions in a single row. Designed for perpendicular mounting, it utilizes self-levelling floating contacts to ensure reliable engagement. The mating interface employs tin or flash gold plating on brass terminals, while the tail contacts are tin-plated. Constructed with black PCT insulation rated UL94 V-0, the component supports a maximum current of 3A at 150VDC across an operating temperature range of -55°C to +125°C.

Feature Summary

• Self-levelling floating contact mechanism accommodates PCB tolerances
• Surface mount design enables automated assembly processes
• Single-row perpendicular orientation optimizes board space utilization

Applications

• Consumer electronics requiring compact interconnects
• Industrial control systems needing robust surface mount solutions
• Telecommunications equipment utilizing standard 2.54mm spacing

Procurement Notes

Verify that the specific ordering suffix matches the required terminal plating configuration, as variations exist within this series. Confirm the exact pin count corresponds to the '02' designation in the model number to prevent mismatching during integration. Ensure the selected variant aligns with RoHS compliance requirements if mandated by the end-product specifications.

Selection Notes

Select this component when a low-profile surface mount socket is required for tight vertical clearance constraints. The self-levelling feature makes it suitable for applications where PCB warpage or alignment errors may occur. Choose this part over through-hole alternatives to facilitate high-volume automated placement and reduce manual assembly labor costs.

Part Context

This connector belongs to the 314 series of spring-loaded surface mount sockets from Preci-Dip. It complements other variants in the family that offer different pin counts and plating options. The series is engineered for high-reliability connections in environments demanding consistent electrical performance despite mechanical misalignments.

Replacement Considerations

Direct substitutes include other Preci-Dip 314-series headers with matching pin counts and mounting styles. Cross-brand equivalents must replicate the 2.54mm pitch, self-levelling mechanism, and surface mount footprint to maintain compatibility.
