315-018-500-207

Edgeboard Connectors Overview

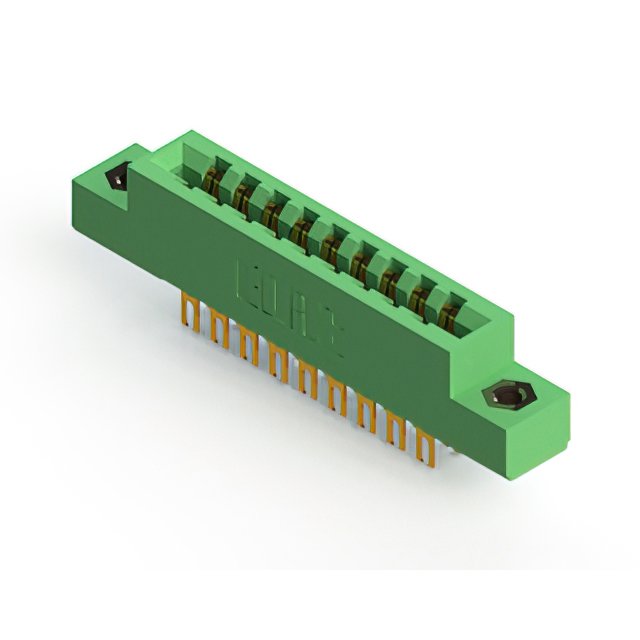

The EDAC Inc. 315-018-500-207 is a dual-edge female card edge connector with 18 positions arranged in two rows of nine contacts each. It features a 0.156-inch (3.96mm) pitch and accepts board thicknesses between 0.054 and 0.070 inches (1.37 to 1.78mm). The unit utilizes gold-plated copper alloy half-bead contacts for reliable signal transmission. Designed for panel mount applications, it includes flange features such as flush mounting, top openings, and unthreaded holes with a 0.128-inch diameter. The housing is constructed from green thermoplastic polyester, ensuring durability across an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration with gold-plated copper alloy half-bead contacts
• Panel mount design with flush installation and top opening flange features
• Thermoplastic polyester insulation providing stability within specified thermal limits

Edgeboard Connectors Applications

• Rack and panel interconnection systems
• Industrial control circuitry
• Computing and storage hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current 305, 315, and 355 series ordering guide to ensure compatibility with required flange styles and termination types. Confirm that the target printed circuit board thickness falls within the 0.054 to 0.070 inch specification range before finalizing procurement orders to prevent mechanical fitment issues.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 3.96mm pitch is required for panel-mounted applications. Ensure the design accommodates the specific flange characteristics, including the unthreaded 0.128-inch diameter holes. Verify that the application environment remains within the -40°C to +105°C operational temperature range and that the PCB material supports the specified thickness constraints for proper insertion.

Edgeboard Connectors Part Context

This part belongs to the EDAC 315 series, which specializes in standard card edge connectors designed for robust rack and panel environments. The series offers various position counts and pitch options to support diverse interconnect needs in computing, medical, and industrial sectors. The 315 series is characterized by its durable thermoplastic construction and reliable contact plating, serving as a critical interface solution for high-density electronic assemblies.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 305, 315, and 355 series ordering guide for direct substitutes. Cross-reference alternative part numbers only if they match the exact 18-position count, 3.96mm pitch, and dual-edge female configuration requirements.
