315-030-520-202

Edgeboard Connectors Overview

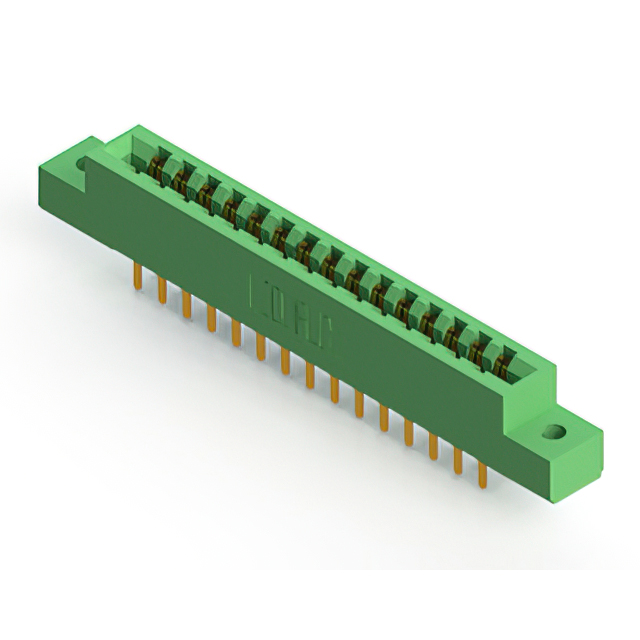

The EDAC Inc. 315-030-520-202 is a dual edge card edge connector designed for printed circuit board applications. It features 30 positions arranged in two rows, providing 15 circuits per side with female contact gender. The connector utilizes gold-plated contacts to ensure reliable signal transmission and low contact resistance. The mating interface height is specified at 0.156 inches (3.96 mm). This component is mounted directly onto the PCB and is suitable for high-density interconnect requirements in various electronic systems.

Edgeboard Connectors Feature Summary

• Dual edge configuration supporting two-sided card insertion
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Female contact gender for secure mating with card edge fingers
• Standardized 0.156-inch interface height for compatibility

Edgeboard Connectors Applications

• Industrial control systems
• Medical equipment such as ventilators
• Storage devices and power supplies
• Navigational equipment

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm pin count and plating specifications. Ensure that the procurement source provides valid RoHS compliance certificates if required by your manufacturing standards. Cross-reference the datasheet to confirm the mounting type and interface dimensions match your PCB layout requirements before finalizing orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge female interface is required for card-based architectures. The 30-position layout offers a balance between density and spacing. Consider the gold plating for environments where oxidation resistance is critical. Verify that the 0.156 inch height aligns with the mechanical constraints of the housing or chassis design.

Edgeboard Connectors Part Context

EDAC Inc. specializes in card edge and rack & panel connectors, established in 1966. The company serves computing, medical, aerospace, and industrial sectors. This model belongs to their edgeboard connector series, which focuses on robust interconnect solutions for OEMs requiring reliable signal integrity in compact form factors.

Edgeboard Connectors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult EDAC technical support for direct replacements or verify compatibility with similar EDAC series models based on mechanical and electrical parameters.
