315-034-555-207

Edgeboard Connectors Overview

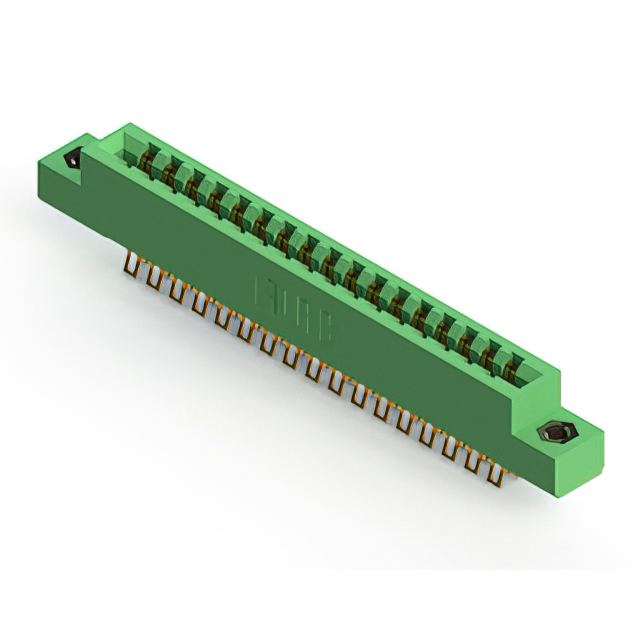

The EDAC Inc. 315-034-555-207 is a dual-edge female card edge connector from the 315 Series, designed for through-hole termination. It features 34 positions with a 0.156-inch (3.96mm) pitch and two contact rows. The connector utilizes semi-bellows contacts made of copper alloy with 10.0µin gold plating. It accommodates PCB thicknesses between 0.054 and 0.070 inches. The insulator is green thermoplastic polyester, rated for -40°C to 105°C operation. Flange features include flush mount, top opening, and M3 threaded inserts.

Edgeboard Connectors Feature Summary

• Semi-bellows contact design ensures reliable signal transmission
• Flush mount flange with top opening for secure panel integration
• Gold-plated copper alloy contacts provide corrosion resistance

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment board connections
• Test and measurement instrument interfaces

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 34-position configuration and 0.156-inch pitch before procurement. Confirm that the M3 threaded insert flange feature aligns with the mechanical mounting requirements of the target application. Ensure compatibility with standard PCB thickness ranges specified in the official datasheet to guarantee proper insertion and retention force during assembly.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 0.156-inch pitch is required for through-hole mounting. The choice is appropriate for applications needing a flush mount profile with integrated M3 threaded fasteners. Consider the operating temperature range and gold plating specifications to ensure environmental durability meets the system's operational standards and reliability requirements.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 315 Series, which specializes in card edge connectors for various industrial and commercial applications. The series offers multiple position counts and pitch options to accommodate different board densities. The 315-034-555-207 variant specifically addresses needs for moderate density connections with robust mechanical mounting capabilities via its flanged design.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 315 Series parts for alternative position counts or pitch variations if mechanical constraints differ. Verify that any substitute maintains the same semi-bellows contact type and gold plating thickness to preserve electrical performance and mating cycle durability without compromising the original design intent.
