316-022-500-168

Edgeboard Connectors Overview

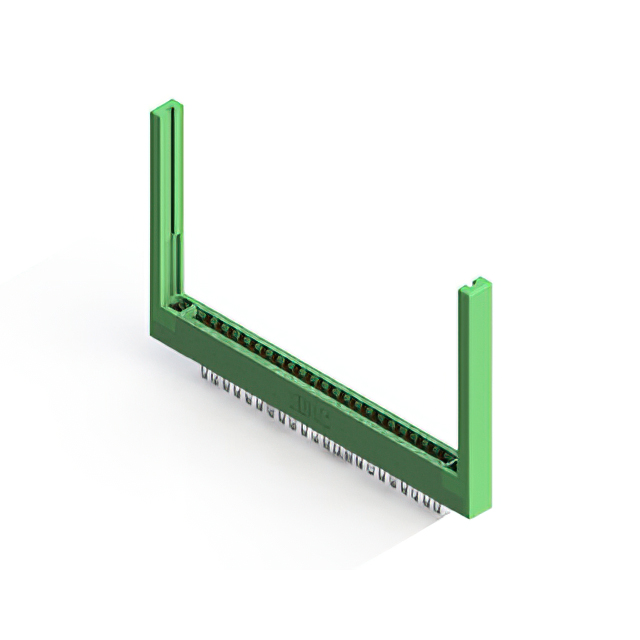

The EDAC Inc. model 316-022-500-168 is a standard card edge connector designed for vertical panel mounting applications. It features a dual female contact configuration with 22 positions arranged in a single row. The component utilizes a 3.96 mm pitch and supports a board thickness of 1.57 mm. Electrical specifications include a current rating of 5 A, an insulation resistance of 5 GOhms, and a gold-plated copper alloy contact material. The housing is constructed from thermoplastic polyester, ensuring durability within an operating temperature range of -40 C to +105 C.

Edgeboard Connectors Feature Summary

• Dual female contact interface for secure card edge insertion
• Vertical panel mount installation style for stable positioning
• Gold-plated copper alloy contacts for reliable conductivity
• Thermoplastic polyester housing for structural integrity

Edgeboard Connectors Applications

• Industrial control system interconnects
• Panel-mounted electronic module connections
• Standard card edge circuit board integration

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin count, plating type, and orientation. Ensure compatibility with the target PCB card thickness of 1.57 mm and verify that the 3.96 mm pitch aligns with the design requirements. Confirm RoHS compliance status through the latest documentation before procurement.

Edgeboard Connectors Selection Notes

Select this component when a vertical panel-mount solution with a 3.96 mm pitch is required. The 22-position dual female configuration suits applications needing robust electrical connections. Consider the thermoplastic polyester housing and gold plating for environments requiring high insulation resistance and corrosion protection within the specified temperature range.

Edgeboard Connectors Part Context

This part belongs to the EDAC 316 series of standard card edge connectors. The series offers extensive design options to tailor interconnect requirements. The 316 series is characterized by its versatility in pitch and position counts, supporting various industrial and commercial electronic assembly needs through standardized form factors.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 516 Series Ordering Guide or official cross-reference documents for verified substitute part numbers. Do not assume generic interchangeability based on similar pitch or position counts without verifying mechanical and electrical specifications.
