316-036-500-101

Edgeboard Connectors Overview

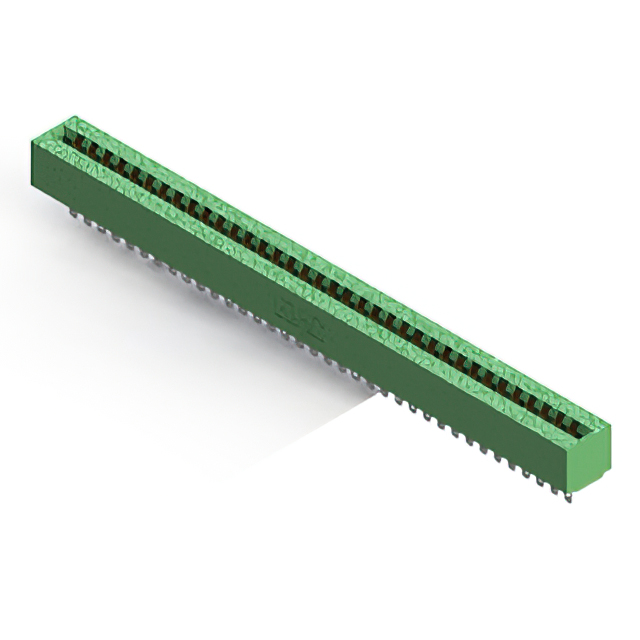

The EDAC Inc. 316-036-500-101 is a standard card edge connector from the 316 series, designed for vertical panel mounting applications. It features a dual female configuration with 36 positions and a pitch of 0.156 inches (3.96 mm). The connector utilizes cantilever contacts made of copper alloy with gold plating to ensure reliable signal transmission. It supports a PCB thickness of 1.57 mm and operates within a temperature range of -40°C to +105°C. The housing is constructed from thermoplastic polyester, providing insulation resistance of 5 GOhms and a current rating of 5 A per contact.

Edgeboard Connectors Feature Summary

• Dual female cantilever contact design for secure board insertion
• Vertical panel mount style for structural stability
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic polyester insulation for high dielectric strength

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules
• Embedded computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify that the specific ordering suffix matches the required contact finish and housing color specifications. Confirm compliance with RoHS3 directives and REACH regulations before integration. Ensure the selected variant aligns with the intended PCB thickness and mounting orientation requirements for the target assembly.

Edgeboard Connectors Selection Notes

Select this component when a vertical panel-mount solution with dual-sided access is required. The 0.156-inch pitch accommodates standard edgeboard dimensions. Verify that the 5 A current rating and 5 GOhms insulation resistance meet the circuit's electrical demands. Consider the operating temperature range for environmental suitability.

Edgeboard Connectors Part Context

This part belongs to the EDAC 316 series of standard card edge connectors. The series offers various position counts and termination options. The 316-036-500-101 specifically denotes a 36-position dual female variant with vertical mounting characteristics. It is distinct from single-row or horizontal mounting alternatives within the same family.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 316 series parts with identical 36-position dual female configurations and vertical mounting styles. Cross-referencing pinout compatibility and mechanical envelope dimensions is essential when evaluating alternative manufacturers' offerings.
