316-037-400-107

Edgeboard Connectors Overview

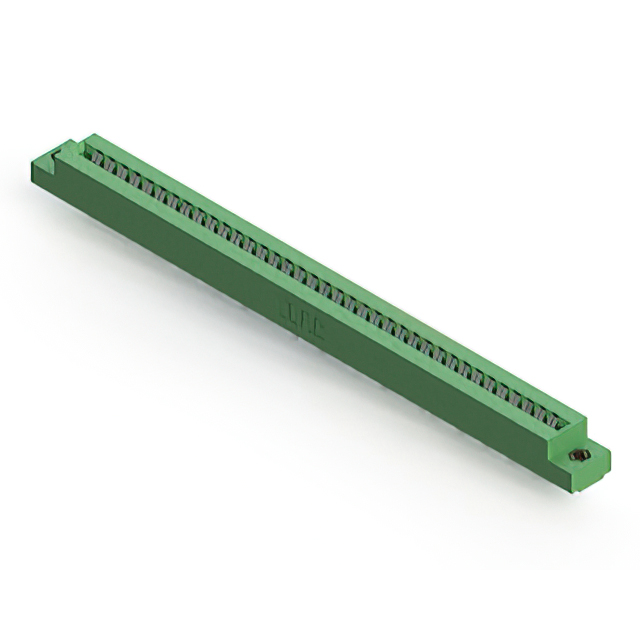

The EDAC Inc. 316-037-400-107 is a standard card edge connector designed for dual-edge board applications. It features 74 positions with a 0.156-inch (3.96mm) pitch and utilizes female contacts. The housing is green, and the contacts are tin-plated copper alloy. This component supports through-hole termination and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Tin-plated copper alloy contacts ensure reliable electrical performance
• Thermoplastic polyester insulation provides structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 316 Series Ordering Guide to confirm pin count, plating, and housing color. Ensure compatibility with target PCB thickness and mounting requirements before procurement. Cross-reference the full part number with authorized distributors to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this model when a dual-edge female connector with a 3.96mm pitch is required. Confirm that the application environment falls within the specified -40°C to +105°C operating range. Verify that the PCB design accommodates the through-hole termination style and that the 74-position layout matches the circuit board dimensions.

Edgeboard Connectors Part Context

This component belongs to the EDAC 316 Series, which specializes in standard card edge connectors. The series offers various position counts and termination styles to support diverse electronic assembly needs. The 316-037-400-107 variant specifically addresses high-density dual-edge interface requirements.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 316 Series cross-reference guide for direct substitutes. Compatible alternatives may include other EDAC models with identical pitch and position counts but different plating or housing colors.
