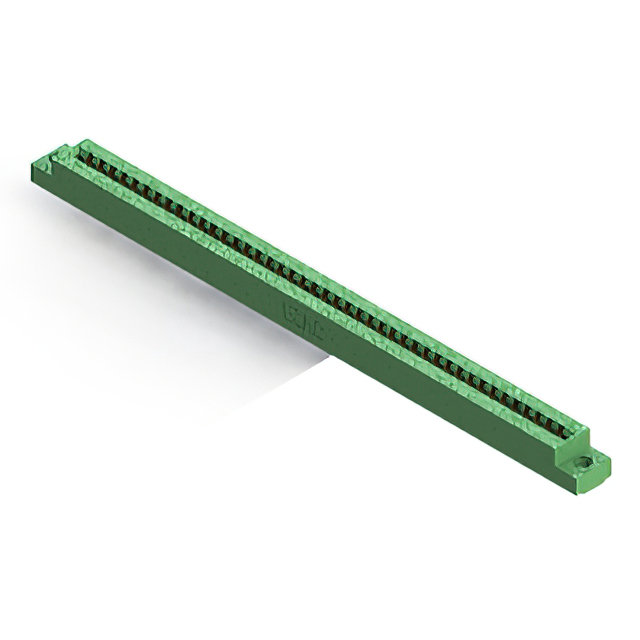

316-043-520-104 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 86POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 316-043-520-104
- Description：CONN EDGE DUAL FMALE 86POS 0.156
- Series：316
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：43
- Number of Positions：86
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 316-043-520-104
Edgeboard Connectors Overview
The EDAC Inc. 316-043-520-104 is a dual-edge card edge connector from the 316 Series, designed for high-density applications. It features 86 positions with a 0.156-inch (3.96mm) pitch and gold-plated contacts. The unit is green, thermoplastic polyester housing, rated for 5A current and -40°C to +105°C operation. Insulation resistance is 5 GOhms.
Edgeboard Connectors Feature Summary
- Dual-edge female contact configuration for secure board insertion
- Gold-plated copper alloy contacts ensure reliable conductivity
- Thermoplastic polyester housing provides thermal stability
Edgeboard Connectors Applications
- High-density backplane interconnects
- Industrial control system modules
- Telecommunications equipment interfaces
Edgeboard Connectors Procurement Notes
Verify part number accuracy against official EDAC documentation before ordering. Confirm that the specific suffix matches the required dual-edge configuration and contact plating specifications. Ensure compatibility with existing panel mounting requirements and board thickness standards.
Edgeboard Connectors Selection Notes
Select this component when a dual-edge interface is required for robust signal integrity. Consider the 0.156-inch pitch for spacing constraints. Evaluate the temperature range and current rating against system load requirements to ensure long-term reliability in operational environments.
Edgeboard Connectors Part Context
This connector belongs to the EDAC 316 Series of standard card edge connectors. It is distinct from single-edge variants and other series like the 307 or 516. The 316 line focuses on durable, vertical panel-mount solutions for demanding electronic applications requiring stable connections.
Edgeboard Connectors Replacement Considerations
Direct substitutes include EDAC 316-043-520-158. Verify mechanical fit and electrical ratings before swapping. Generic equivalents may lack the specific gold plating or housing material properties defined by the original manufacturer.
