3216-26G00SBU

Overview

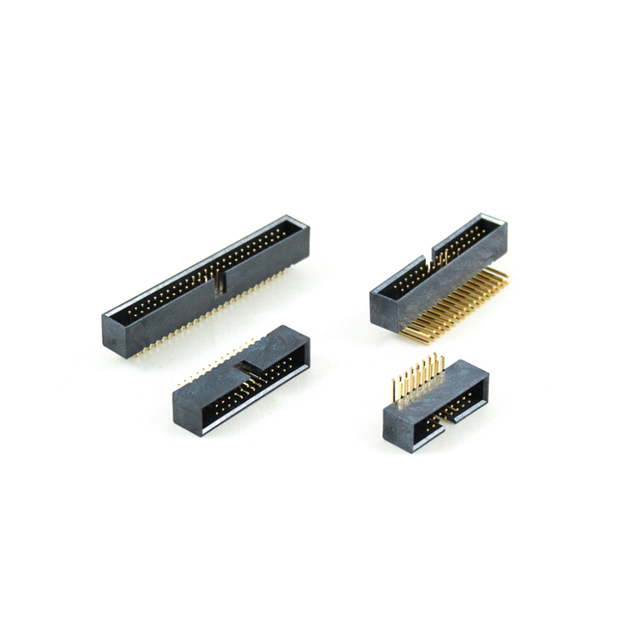

The Oupiin 3216-26G00SBU is a board connector featuring 26 contacts arranged in two rows. It utilizes a male pin configuration with a straight orientation and a 0.05-inch (1.27mm) pitch. The component employs solder terminals for secure attachment and includes locking features to ensure stability during operation.

Feature Summary

• Provides reliable electrical connections through a male pin header design suitable for board-to-board interfaces.
• Incorporates locking mechanisms to maintain physical stability and prevent accidental disconnection.
• Supports moderate connection density requirements without necessitating surface-mount or ultra-fine-pitch solutions.

Applications

• General electronic assemblies requiring moderate connection density
• Board-to-board interconnections in consumer electronics
• Industrial control systems utilizing standard pitch headers

Procurement Notes

Verify the specific datasheet version and RoHS compliance status before procurement, as distributor listings may vary. Confirm that the straight orientation and 1.27mm pitch align precisely with your PCB footprint requirements. Ensure the locking feature meets the mechanical retention needs of your assembly environment.

Selection Notes

Select this component when a through-hole male header with a 1.27mm pitch is required for moderate density applications. It is appropriate for designs avoiding surface-mount complexity while needing secure locking. Evaluate the straight profile against available board space constraints.

Part Context

This part belongs to the Oupiin box header series, characterized by straight and right-angle options. It serves as a standard interconnect solution within the manufacturer's portfolio, offering a balance between connection density and ease of assembly for various electronic platforms.

Replacement Considerations

Direct substitutes include other 26-pin, 2-row, 1.27mm pitch male headers from Oupiin, such as the 3216-40G00DBT-P family variants. Verify identical mechanical dimensions and locking mechanisms when considering cross-manufacturer alternatives.
