3220-16-0300-00

$1.10

Description：CONN HEADER SMD 16POS 1.27MM
Series：-
Mfr：CNC Tech
Package：Tray

SKU:ee08e23bb687 Category: Headers, Male Pins Brand: CNC Tech

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

3220-16-0300-00 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists CNC Tech. Its product description is CONN HEADER SMD 16POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 3220-16-0300-00

Description：CONN HEADER SMD 16POS 1.27MM
Series：-
Mfr：CNC Tech
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：16
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.213" (5.40mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：Gold
Contact Material：Brass
Insulation Material：Polyamide (PA9T), Nylon 9T
Features：Keying Slot
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A
Voltage Rating：50VAC/DC

Headers, Male Pins datasheet and documents for 3220-16-0300-00

3220-16-0300-00

Headers, Male Pins Overview

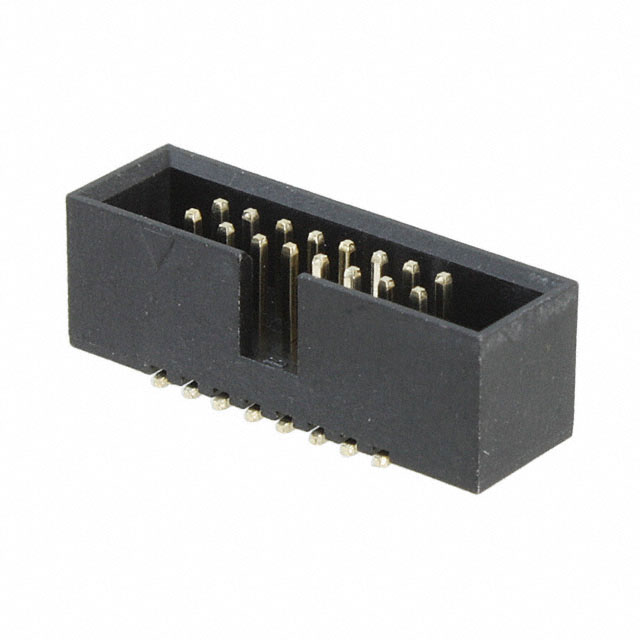

The CNC Tech 3220-16-0300-00 is a surface mount rectangular connector header designed for board-to-cable or wire connections. It features 16 positions arranged in two rows with a 0.050-inch (1.27mm) pitch. The contacts are gold-plated brass pins, and the housing is constructed from black polyamide (PA9T). Rated for 1A at 50VAC/DC, it operates within a temperature range of -40°C to 105°C. The component utilizes a four-wall shielded design with a push-pull locking mechanism and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

Surface mount installation with push-pull locking mechanism
Four-wall shielded housing design
Gold-plated brass contact terminals
Polyamide insulation material

Headers, Male Pins Applications

Board-to-cable interconnections
Board-to-wire interconnections
Industrial electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix against official documentation to confirm packaging configuration. Confirm that the requested variant matches the exact pin count and row arrangement specified in the manufacturer's datasheet. Ensure compatibility with standard surface mount reflow processes and check for any specific handling requirements related to the push-pull locking feature during assembly.

Headers, Male Pins Selection Notes

Select this component when a low-profile surface mount header with shielding is required for high-density applications. The 1.27mm pitch suits tight spacing constraints. Verify that the 1A current rating and 50V voltage limit align with circuit requirements. Consider the push-pull lock for secure mating in vibration-prone environments.

Headers, Male Pins Part Context

This part belongs to the CNC Tech 3220 series of industrial cable and connector solutions. The series focuses on providing cost-effective interconnection options for various electronic applications. The 3220 series typically includes headers and sockets with standardized pitches and robust mechanical designs suitable for general industrial use.
