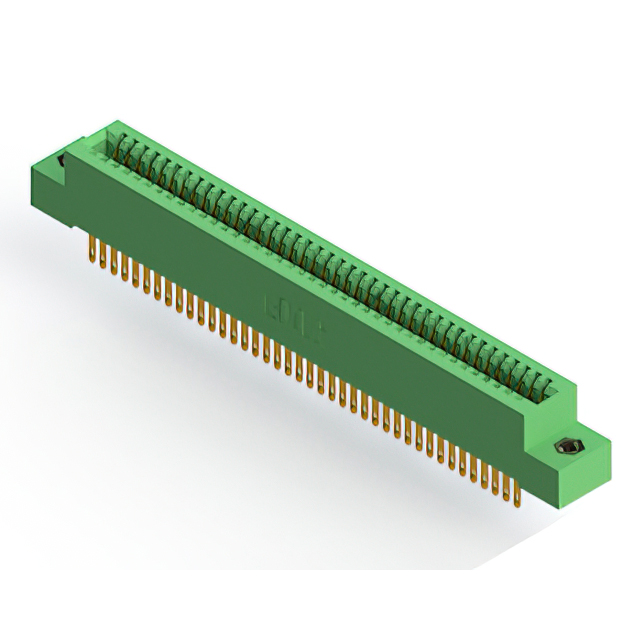

325-080-500-208 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 80POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 325-080-500-208
- Description：CONN EDGE DUAL FMALE 80POS 0.100
- Series：325
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：40
- Number of Positions：80
- Card Thickness：0.125" (3.18mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-65°C ~ 125°C
Edgeboard Connectors datasheet and documents for 325-080-500-208
Edgeboard Connectors Overview
The EDAC Inc. 325-080-500-208 is a standard card edge connector designed for vertical panel mounting applications. It features an 80-position dual female configuration with a 0.100-inch (2.54 mm) pitch. The component utilizes gold-plated contacts and is rated for a maximum operating temperature of +105°C and a minimum of -40°C. This connector supports a board thickness of 1.57 mm and employs a solder lug termination method.
Edgeboard Connectors Feature Summary
- Vertical panel mount design for secure installation
- Dual row female contact configuration
- Gold-plated copper alloy contacts for conductivity
Edgeboard Connectors Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Test and measurement instrumentation boards
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required board thicknesses and termination styles. Confirm that the 0.100-inch pitch aligns with the target PCB layout specifications before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a vertical, panel-mount solution is required for high-density signal routing. Ensure the application environment remains within the specified -40°C to +105°C operational range and that the PCB thickness matches the connector's design tolerance.
Edgeboard Connectors Part Context
This part belongs to the EDAC 325 series of standard card edge connectors. The series offers various pin counts and termination options, providing versatile connectivity solutions for industrial and commercial electronic assemblies requiring reliable board-to-board or board-to-panel interfaces.
Edgeboard Connectors Replacement Considerations
Cross-reference with EDAC part numbers such as 325-080-500-207 for alternative packaging or minor variant differences. Verify mechanical dimensions and electrical ratings match exactly before substituting.
