3260-10S1

Headers, Receptacles, Female Sockets Overview

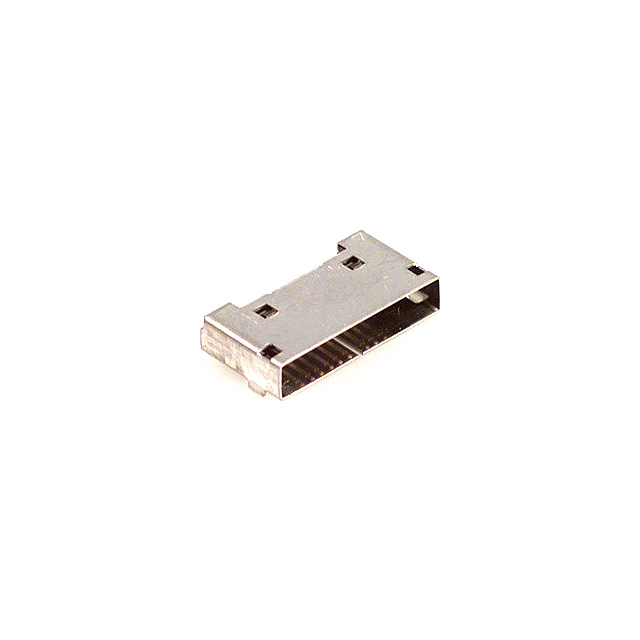

The Hirose Electric Co Ltd 3260-10S1 is a 10-position receptacle connector from the 3200 series, designed for microminiature interfaces. It features a 0.031 inch (0.80mm) mating pitch and utilizes surface mount right-angle termination. The contacts are made of phosphor bronze with gold plating, ensuring reliable conductivity. Rated for 500mA current and 125VAC voltage, it employs a PPS insulator with UL94 V-0 flammability rating. Key features include board guides and shielding capabilities, supporting general electronic applications.

Headers, Receptacles, Female Sockets Feature Summary

• Board guide integration for precise alignment during assembly
• Shielded design to minimize electromagnetic interference
• Surface mount right-angle configuration for compact PCB layouts

Headers, Receptacles, Female Sockets Applications

• Microminiature interface connections
• General electronic equipment interconnects
• Board-to-cable or wire applications

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix matches the required contact finish and insulation height specifications. Confirm RoHS compliance status and moisture sensitivity level (MSL 1) requirements against your manufacturing process constraints. Ensure the right-angle surface mount package aligns with your PCB footprint design guidelines before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, shielded SMT receptacle is required for high-density interconnects. The 0.80mm pitch suits space-constrained designs needing robust mechanical retention via board guides. Consider the 500mA current rating and 125VAC voltage limit to ensure operational safety within your system's electrical parameters and thermal management strategy.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Hirose 3200 series, which specializes in SMT connectors for microminiature interfaces. The series offers various pin counts and configurations, balancing miniaturization with reliable performance. The 3260-10S1 specifically provides a 10-position solution with integrated shielding and board guide features for enhanced assembly accuracy.

Headers, Receptacles, Female Sockets Replacement Considerations

Check for direct substitutes within the same 3200 series family, such as different pin count variants like 3260-8S1 or 3260B-12S1(55), if pin compatibility allows. Verify that any alternative maintains identical mounting style, pitch, and shielding characteristics to ensure seamless integration without redesigning the PCB layout.
