333-011-542-104

Edgeboard Connectors Overview

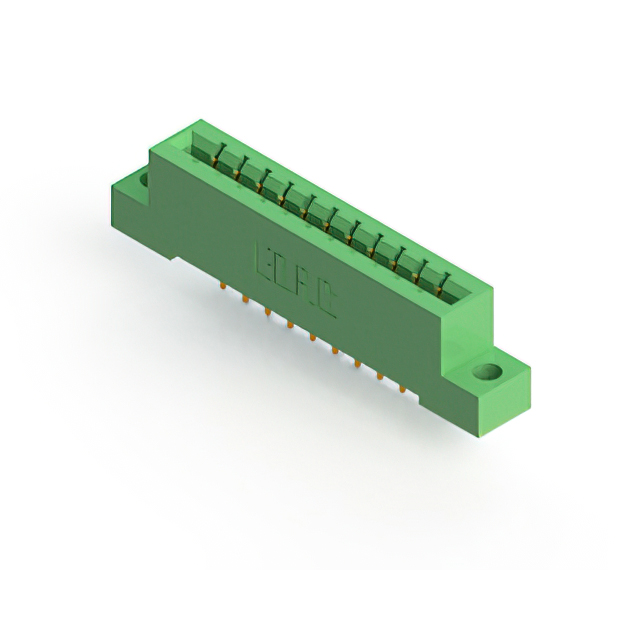

The EDAC Inc. 333-011-542-104 is a standard card edge connector from the 333 series, designed for vertical through-hole mounting. It features 11 positions with a 3.96 mm pitch and utilizes gold-plated copper alloy contacts housed in a green thermoplastic polyester body. The connector supports a maximum operating temperature of +105°C and an insulation resistance of 5 Gohms.

Edgeboard Connectors Feature Summary

• Vertical orientation for direct board insertion
• Gold-plated contacts for reliable conductivity
• Thermoplastic polyester housing for durability

Edgeboard Connectors Applications

• Single-edge card edge connections
• Industrial control modules
• Telecommunications equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the specific pin count and pitch against design requirements before ordering. Confirm that the thermal rating aligns with the operational environment. Ensure the mounting style matches the PCB layout constraints to avoid assembly issues.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical connection is required for boards up to 1.78 mm thick. Consider the 3.96 mm spacing for adequate clearance. Verify compatibility with mating edgeboards to ensure proper engagement and signal integrity.

Edgeboard Connectors Part Context

This part belongs to the EDAC 333 series, which offers various position counts and housing colors. The series is characterized by its robust construction and suitability for general-purpose interconnect applications requiring high reliability and consistent performance over time.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Cross-reference with other EDAC 333 series variants only if mechanical and electrical specifications match exactly.
