333-013-523-604

Edgeboard Connectors Overview

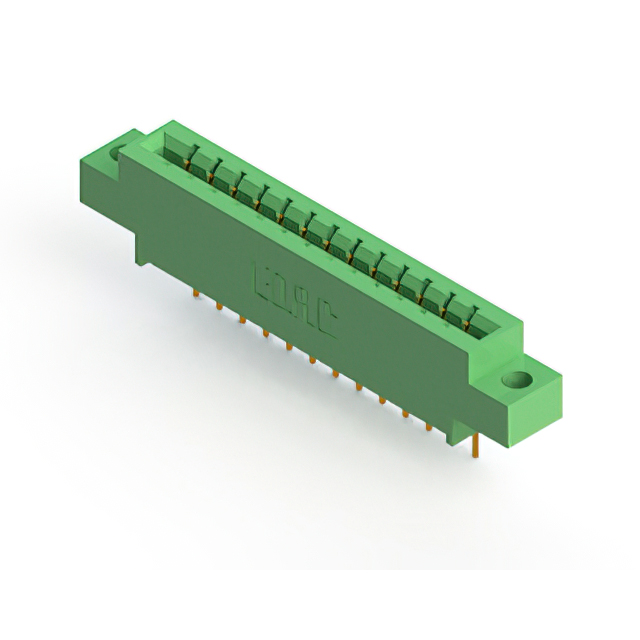

The EDAC Inc. 333-013-523-604 is a standard single-edge card edge connector designed for through-hole mounting. It features 20 positions with a 3.96 mm pitch and supports a board thickness of 1.57 mm. The contacts are gold-plated copper alloy, rated for 3 A current, and housed in green thermoplastic polyester. Insulation resistance is 5 GOhms, with an operating temperature range up to 105°C.

Edgeboard Connectors Feature Summary

• Gold-plated copper alloy contacts ensure reliable signal transmission and corrosion resistance.
• Thermoplastic polyester housing provides structural integrity and high insulation resistance.
• Vertical through-hole PC pin termination facilitates secure PCB integration.

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing standard density connectors
• General-purpose electronic assemblies needing vertical mounting solutions

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact contact plating thickness and housing color variations. Ensure that the selected variant matches the required board thickness tolerance of 1.57 mm for proper mechanical fit. Cross-reference the RoHS compliance status with the latest manufacturer release notes before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a vertical, single-edge connector with a 3.96 mm pitch is required. Confirm that the application environment stays within the -40°C to 105°C operating temperature range. Verify that the PCB design accommodates the through-hole PC pin termination style and the specified 20-position layout for adequate spacing and current handling.

Edgeboard Connectors Part Context

This part belongs to the EDAC 333 series, which specializes in standard density card edge connectors. The series offers various position counts and mounting options, all sharing a consistent 3.96 mm pitch. The 333-013-523-604 specifically addresses needs for vertical, through-hole integration in compact electronic designs.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 333 series variants with matching 20-position layouts and 3.96 mm pitch, such as 333-020-521-604. Verify mechanical dimensions and electrical ratings before swapping to ensure compatibility with existing PCB footprints and system requirements.
