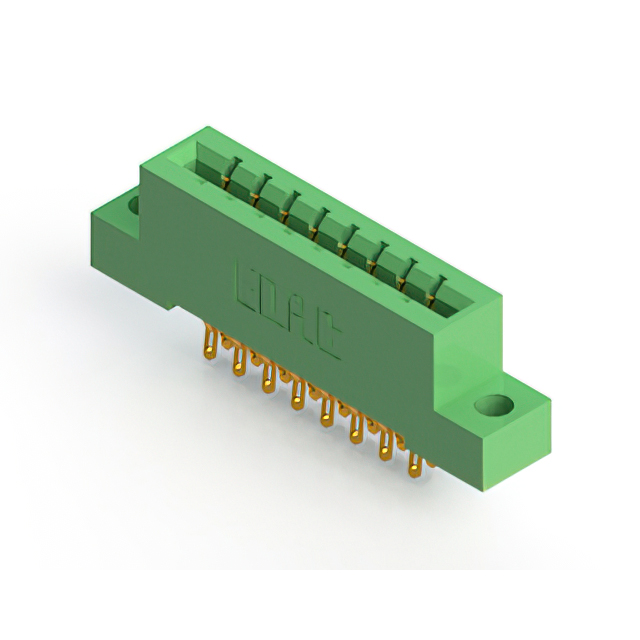

333-016-555-204 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 16POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 333-016-555-204
- Description：CONN EDGE DUAL FMALE 16POS 0.156
- Series：333
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：8
- Number of Positions：16
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Extender
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 333-016-555-204
Edgeboard Connectors Overview
The EDAC Inc. 333-016-555-204 is a standard card edge connector featuring 16 positions in a dual female configuration. It utilizes a 0.156-inch (3.96 mm) pitch and supports a maximum board thickness of 1.57 mm. The contacts are gold-plated copper alloy, rated for 3 A current, with PC pin termination for through-hole vertical mounting. Insulation resistance is specified at 5 Gohms, housed in thermoplastic polyester.
Edgeboard Connectors Feature Summary
- Dual row female contact configuration for extended board compatibility
- Gold-plated copper alloy contacts ensure reliable signal transmission
- Thermoplastic polyester housing provides structural stability
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Test and measurement equipment interfaces
- Telecommunications hardware modules
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix to confirm plating thickness and material specifications. Ensure the target PCB design accommodates the 1.57 mm maximum card thickness and 3.96 mm pitch requirements. Confirm that the through-hole mounting style aligns with the assembly process capabilities.
Edgeboard Connectors Selection Notes
Select this component when a dual-row female connector is required for thicker circuit boards up to 1.57 mm. The 3 A current rating and gold contacts suit applications demanding stable electrical performance. Verify that the vertical through-hole installation method fits the mechanical constraints of the enclosure.
Edgeboard Connectors Part Context
This part belongs to the EDAC 333 series, designed for standard card edge applications. The series offers various position counts and mounting styles. The 333-016-555-204 specifically addresses needs for 16-position dual-row connections with high durability.
Edgeboard Connectors Replacement Considerations
Cross-reference with other EDAC 333 series parts for different position counts. Verify compatibility with alternative manufacturers offering identical 0.156 inch pitch dual female connectors. Ensure mechanical dimensions match before substitution.
