Edgeboard Connectors Overview

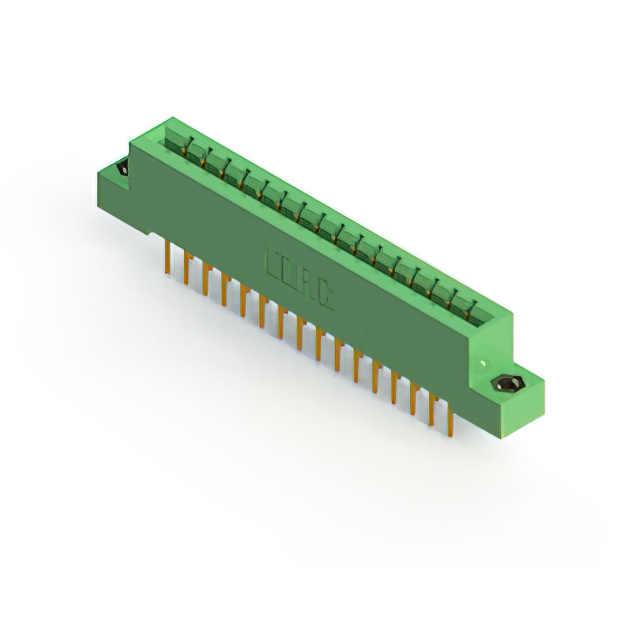

The EDAC Inc. 333-032-541-208 is a standard card edge connector featuring 32 positions with a 3.96 mm (0.156 inch) pitch. It utilizes a dual-edge female contact configuration designed for vertical through-hole mounting. The contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. The housing is made of thermoplastic polyester, providing structural integrity and electrical insulation. This component supports a current rating of 3 A and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic polyester housing for thermal stability
• Vertical through-hole termination for PCB integration

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Consumer electronics module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, plating thickness, and housing color specifications. Ensure compatibility with the target printed circuit board thickness and edge profile requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-sided card edge interface is required for high-density applications. Consider the 3.96 mm pitch and 3 A current rating to match system power and signal distribution needs. Verify that the vertical mounting style aligns with the mechanical constraints of the enclosure design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 333 series of standard card edge connectors. The series offers various position counts and termination styles, providing flexibility for different electronic assembly requirements while maintaining consistent dimensional standards and material properties across the product line.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 333 Series Ordering Guide for direct substitutes with differing position counts or termination types. Cross-reference compatible parts from other manufacturers only if they strictly adhere to the same 3.96 mm pitch, dual-edge geometry, and through-hole mounting specifications.

Edgeboard Connectors FAQ

What is the contact material used in this connector?

The contacts are made from copper alloy and feature gold plating.

Is this connector single-row or double-row?

It is a dual-edge connector, engaging both sides of the card edge simultaneously.
