333-038-556-803

Edgeboard Connectors Overview

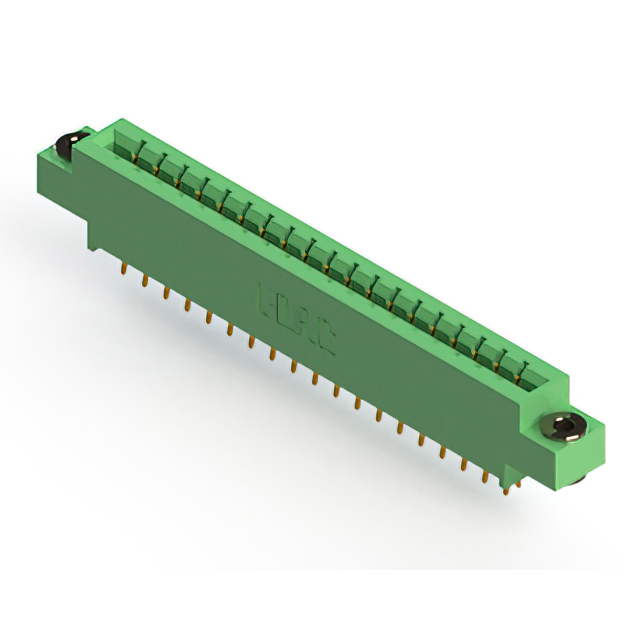

The EDAC Inc. 333-038-556-803 is a dual-edge female card edge connector designed for through-hole mounting. It features 38 positions with a contact spacing of 0.156 inches (3.96mm) and a row spacing of 0.200 inches (5.08mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm), ranging from 0.054 to 0.070 inches. Contacts are made of copper alloy with gold plating, ensuring reliable signal transmission.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated copper alloy contacts for corrosion resistance
• High-profile insulator body constructed from thermoplastic polyester
• Through-hole termination method for stable PCB attachment

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation modules
• Embedded computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct pin count, plating thickness, and flange style. Confirm that the target application supports the required 0.156-inch pitch and board thickness specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided connection is required for single-layer or double-layer PCBs within the specified thickness range. Ensure the mating board edge clearance matches the connector's high-profile design and verify that the operating temperature range meets environmental requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 333 series of card edge connectors, which are standardized for industrial applications. The series offers various position counts and edge configurations, providing modular solutions for system integration where reliable mechanical and electrical connections are critical.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 333 series parts with identical 38-position dual-edge specifications. Verify compatibility with existing panel cutouts and board thickness constraints when considering alternative manufacturers' equivalents.
