Edgeboard Connectors Overview

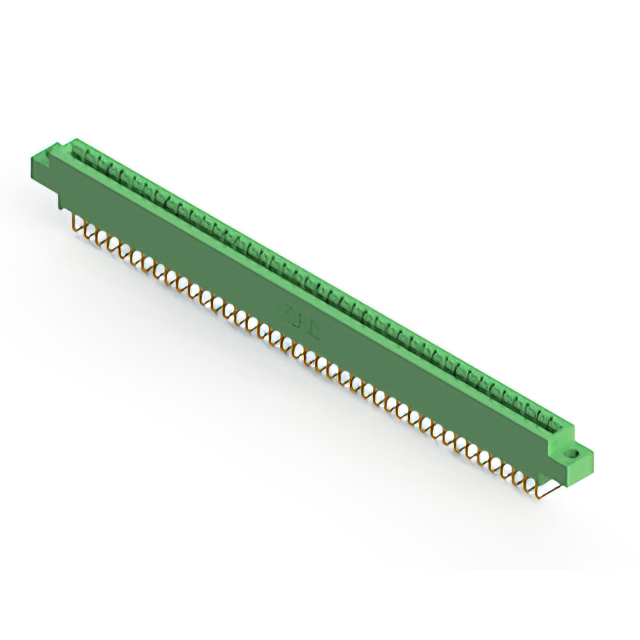

The EDAC Inc. 333-041-558-604 is a standard card edge connector from the 333 series, designed for single-edge applications. It features 41 positions with a pitch of 0.156 inches (3.96 mm). The contacts are gold-plated copper alloy, rated for 3 A current. The insulator is green thermoplastic polyester, supporting board thicknesses between 0.054 and 0.070 inches (1.37 to 1.78 mm). Operating temperature ranges from -40°C to +105°C, with an insulation resistance of 5 Gohms.

Edgeboard Connectors Feature Summary

• Gold-plated copper alloy contacts ensure reliable signal transmission and corrosion resistance.
• Thermoplastic polyester insulator provides stability across a wide operating temperature range.
• Single-row configuration supports standard PCB insertion for efficient circuit integration.

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment signal routing
• Consumer electronics internal board connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm terminal type and mounting style. Ensure the target PCB thickness falls within the specified 1.37 mm to 1.78 mm range for proper contact engagement. Confirm environmental ratings match the application requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a single-edge connector with 41 positions and 3.96 mm pitch is required. Verify that the application does not require dual-row configurations or different termination styles such as wire wrap or surface mount. Ensure compatibility with the intended PCB material and thermal environment specifications.

Edgeboard Connectors Part Context

This component belongs to the EDAC 333 series, which offers various termination options including PC tail and wire hole. The series supports both single and dual row configurations. This specific part number represents a standard female connector variant optimized for through-hole mounting on single-sided edge cards.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other EDAC 333 series variants only if pin count and pitch match exactly.
