Edgeboard Connectors Overview

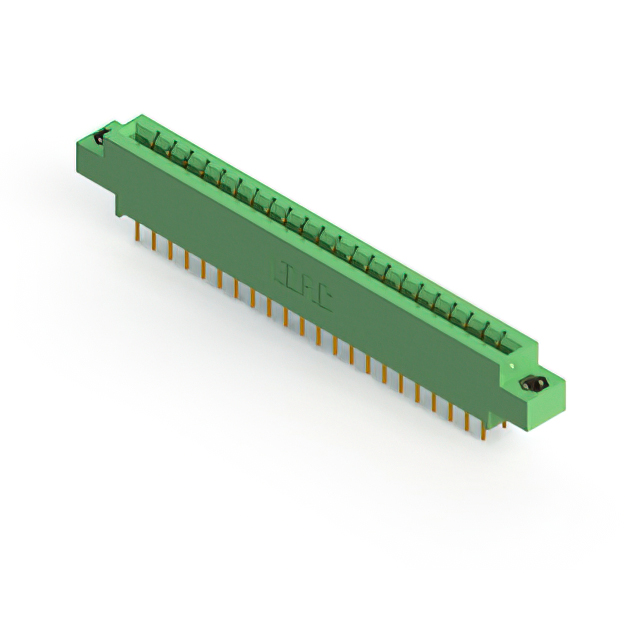

The EDAC Inc. 333-044-541-808 is a standard card edge connector from the 333 series, designed for dual-edge board insertion. It features 44 positions with a contact spacing of 0.156 inches (3.96 mm) and a row spacing of 0.200 inches (5.08 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Constructed with copper alloy contacts that are gold-plated, it ensures reliable electrical performance. The housing is made of thermoplastic polyester, providing durability in operating temperatures ranging from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board retention
• Gold-plated copper alloy contacts for corrosion resistance
• High-profile insulator body design
• Thermoplastic polyester housing material

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation modules
• Automotive electronic control units

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required board thickness and mounting style. Confirm RoHS compliance status if restricted substances are a project constraint. Check availability through authorized distributors as lead times may vary. Ensure the selected variant matches the intended dual-edge application requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connection is required for a 44-position interface. The 3.96 mm pitch suits applications needing moderate density without excessive miniaturization. Verify that the target PCB thickness aligns with the 1.57 mm nominal specification. Consider the high-profile body if vertical clearance allows, as it aids in mechanical stability during mating cycles.

Edgeboard Connectors Part Context

This part belongs to the EDAC 333 series of card edge connectors, which are widely used in modular electronics. The series offers various position counts and edge configurations to support diverse system architectures. The 333-044-541-808 specifically addresses needs for dual-sided connectivity, distinguishing it from single-edge variants within the same family.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 333 series parts with matching 44 positions and dual-edge specifications, such as 333-044-559-808, provided pinout and mechanical dimensions remain compatible.
